How does hull shape affect a boat's speed, stability, and handling?

Hull shape determines a boat's speed, resistance to heel and response to waves and steering. Displacement hulls suit economical cruising at modest speeds, while planing hulls offer higher speeds; beam, underwater sections, keel shape and weight distribution govern much of the comfort and handling.

Underwater shape and loaded weight

Start with the boat's intended cruising speed, waterline length and displacement with fuel, water, equipment and people aboard. Overall length and engine horsepower alone tell you little about how comfortably it will travel.

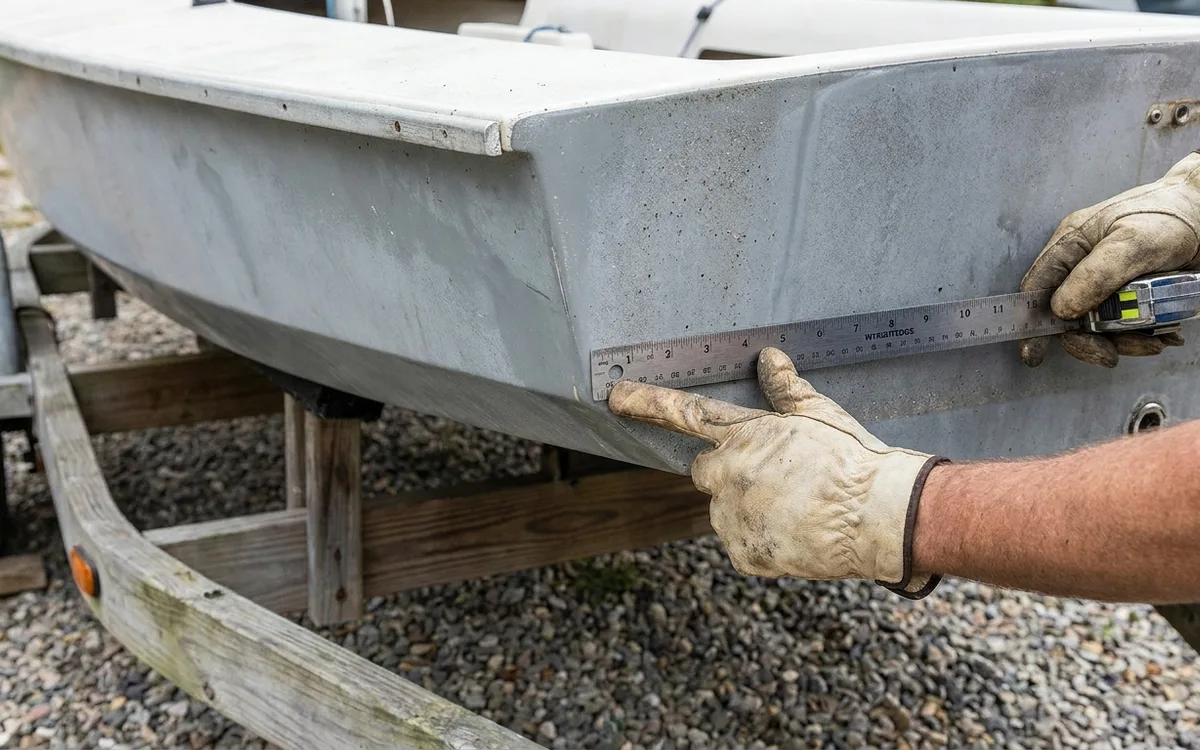

Look at the hull out of the water or study its lines drawing. A sharp bow can disguise flat sections farther aft, so inspect the middle and stern too.

• Rounded sections: common on displacement cruisers, these give a relatively gentle motion but can allow considerable rolling.
• Flat sections and hard chines: provide form stability and help generate lift as speed increases. Chines are the corners where the bottom meets the hull sides.
• Deep V sections: soften wave impacts at speed, usually with greater power demand and less steadiness at rest than a comparable shallow-V hull.

Compare boats at realistic cruising loads. Extra weight aft can make an otherwise capable planing boat struggle to lift its stern.

Displacement and planing speeds

A displacement hull principally pushes water aside rather than lifting onto the surface. As speed rises, wave-making resistance increases steeply. An 8-metre displacement cruiser might reach roughly 7 to 8 knots, depending particularly on waterline length and hull proportions. Treat this as a guide, not a fixed speed limit.

Its economical cruising speed will normally be lower. Adding horsepower near that resistance barrier often produces a larger stern wave and much higher fuel consumption for little extra speed.

A semi-displacement hull has sections that allow some dynamic lift, commonly with a flatter run aft. With sufficient power, it can exceed conventional displacement speeds, although cruising between displacement and full planing can burn plenty of fuel.

A planing hull develops enough lift to support much of its weight dynamically. The bow typically rises during acceleration, then settles to a flatter running angle once the boat is on the plane. There is no sharp boundary between these categories. Loading or inadequate power can prevent a planing boat reaching its intended operating condition.
