How do I build a sailboat, from choosing plans to launching it?

Choose a proven amateur-build design that suits your sailing waters, workshop and experience, then follow its drawings and material specifications throughout the build. Build and inspect the hull, fit the steering and rig, check the equipment, then launch in sheltered water for leak checks and progressive sailing trials.

Choose your boat and plans

Measure your building space, including the doorway and route outside. A finished hull that cannot leave the workshop is an expensive mistake. Allow room to walk around the building jig, turn the hull and store full-length timber.

For a first project, a 3 to 4.5 metre plywood dinghy is usually more manageable than a ballasted cruising yacht. A cabin, ballast keel, engine and permanent electrical installation add substantial cost and work beyond the hull itself.

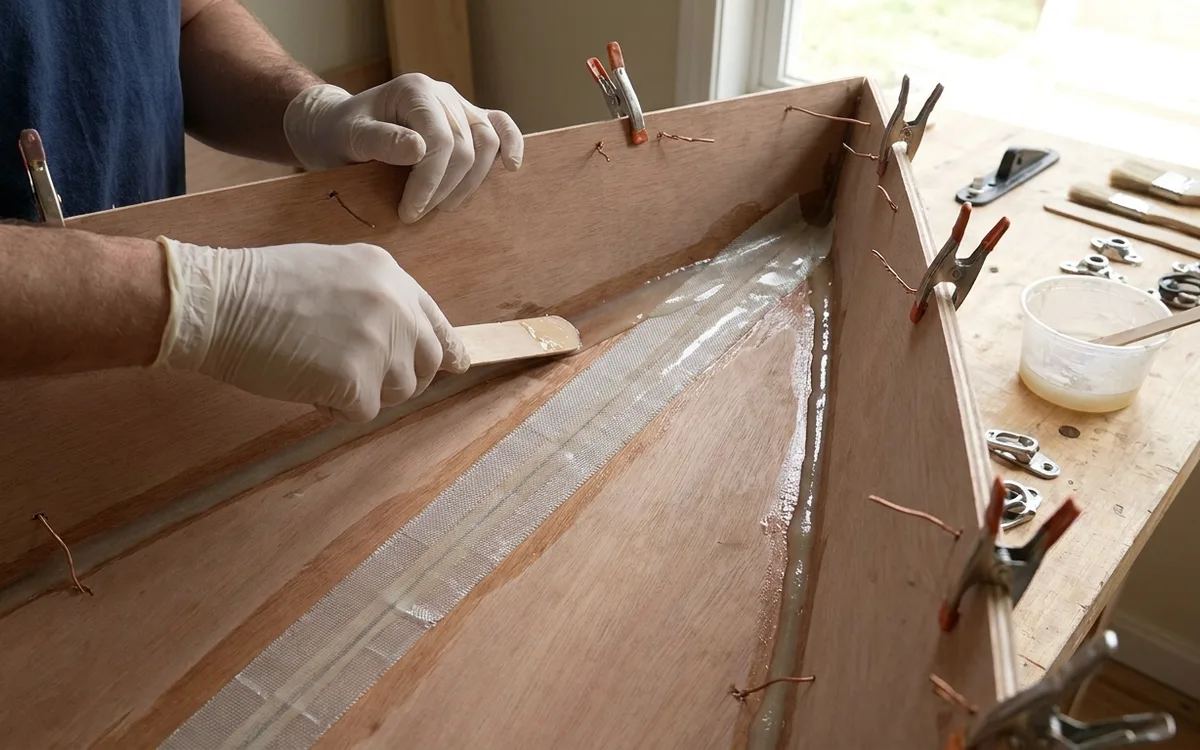

• Stitch-and-glue plywood: panels are temporarily stitched together, then joined with epoxy fillets and glass tape. This is often the most accessible starting point.
• Plywood on frames: panels attach to frames and stringers; accurate setting-out and bevelled joints matter.
• Strip planking: narrow timber strips form the hull, commonly sheathed in glass and epoxy. Expect more shaping and sanding.
• GRP or metal: suitable with the right plans and skills, but mould construction, laminate control or welding can make a one-off build demanding.

Buy plans with a materials list, construction sequence, rig drawings, flotation details and designer support. Check whether full-size patterns or CNC cutting files are included. Keep the specified ballast, sail area, bulkheads and structural joints; ask the designer before changing them.

Budget for the complete boat

Price the whole bill of materials before ordering the hull package. Include sails, mast, boom, fittings, rudder, centreboard or keel, coatings, buoyancy, trailer or transport, storage and launch charges.

As a broad planning allowance, expect a simple plywood dinghy to cost £3,000 to £8,000 in materials and equipment, excluding your labour and often the trailer. A small cruising yacht can cost tens of thousands of pounds. Obtain quotations for your chosen design and add around 20 to 30% contingency.

Allow hundreds of hours for a small dinghy and thousands for a fitted cruising yacht. The designer's records from completed amateur builds are more useful than an optimistic completion date.

Prepare a dry, ventilated workspace with level building supports, reliable measuring tools and plenty of clamps. Use the specified marine plywood, commonly BS 1088 where called for, and the specified adhesive system. WEST SYSTEM and SP Systems are familiar marine epoxy brands, but mixing ratios and working temperatures differ. Wear suitable gloves, eye protection and dust or vapour protection for the materials you use.

Build and inspect the hull

1. Set out the jig. Establish the centreline and reference level; check frame spacing, diagonals and symmetry before fixing anything permanently.
2. Assemble the hull. Cut and dry-fit panels or planks, then bond and fasten them in the specified sequence.
3. Complete structural joints. Follow the drawings for fillet sizes, glass weights, overlaps and reinforcement around the mast step, chainplates and keel attachments.
4. Inspect hidden work. Check bonds, drainage paths, buoyancy compartments and access before fitting decks or cockpit soles. Photograph concealed structure.
5. Fair and finish. Remove epoxy surface contamination as the manufacturer directs, sand appropriately and apply the specified coating system. Exposed epoxy needs protection from sunlight.
