What anchor size and chain length suit an Albin Ballad 30?
I'm upgrading the ground tackle on my 1976 Albin Ballad 30. It currently has an old 25lb CQR and some rusty chain of unknown length. What weight and type of modern anchor should I buy, and what size and length of chain will fit the boat without weighing the bow down too much?
Answer
For the 3.3-tonne Albin Ballad 30, the ideal primary ground tackle is a 10kg new-generation anchor paired with 30 metres of 8mm DIN766 calibrated chain and 30 metres of 14mm nylon octoplait warp. This combination provides excellent holding power in most seabeds without adding excessive weight to the narrow bow of this classic cruiser.
Choosing the Right Anchor
The 1976 Albin Ballad is a well-balanced yacht with a narrow bow and moderate displacement of roughly 3.3 tonnes empty and 4 tonnes loaded. A 25lb (11kg) CQR was the standard fit fifty years ago. Modern designs easily outclass it. A 10kg new-generation anchor hits the sweet spot. It offers double the holding power of an old CQR and sets reliably in weed, sand and mud.
The Ballad has a steeply raked stem and often a low-mounted furling drum like a Furlex. Anchors with large roll bars frequently foul the furler gear when housed. Buy a 10kg Rocna Vulcan or a Spade S60 instead. Both lack a roll bar. They fit snugly on traditional bow rollers and self-launch easily. Expect to pay around £300 for the Vulcan and £450 for the Spade.
Chain Size and Weight
The standard chain for a 30-foot yacht is 8mm DIN766 galvanised Grade 30. Some owners use 6mm Grade 40 chain to save weight. However, 8mm is easier to handle hand-over-hand and fits the gypsies of almost all small windlasses.
Weight distribution matters greatly on a Ballad. The boat will pitch heavily and take water over the deck if you overload the bow. Eight-millimetre chain weighs 1.4kg per metre. An all-chain rode of 50 metres puts 70kg right in the nose.

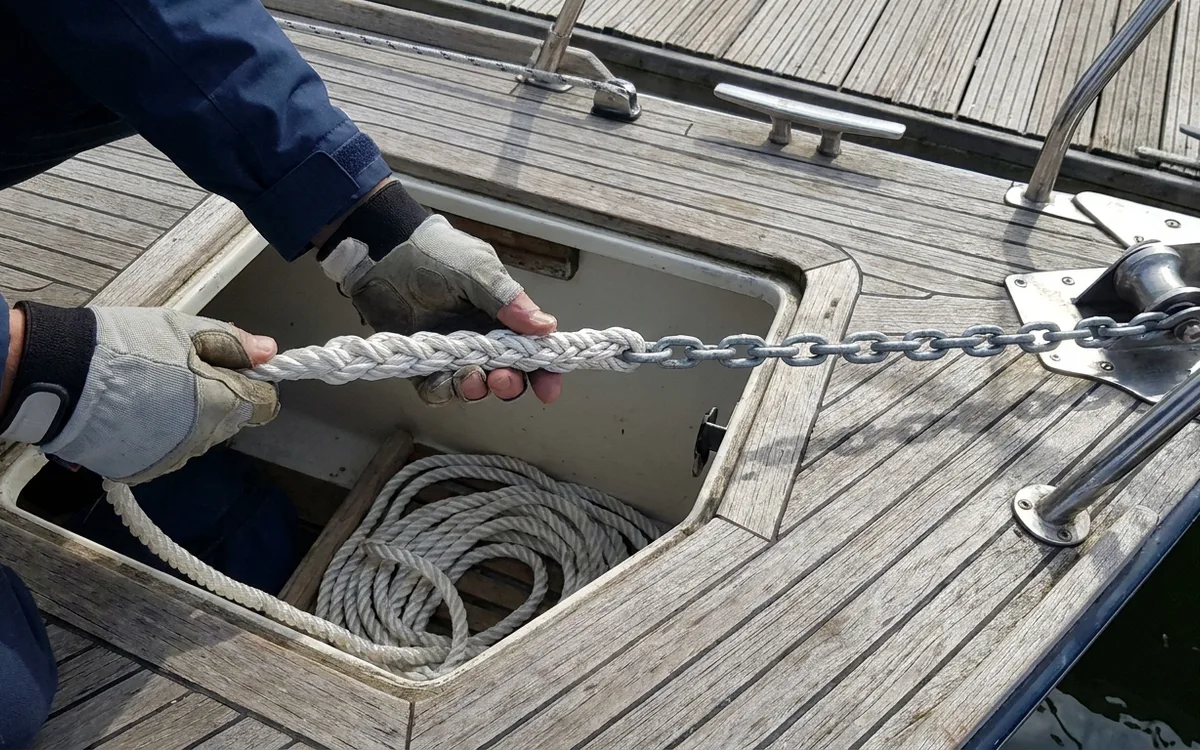

A mixed rode offers a better solution. Use 30 metres of 8mm chain. This gives you 42kg of weight to create a good catenary curve in typical coastal anchorages up to 6 metres deep. Splice this directly to 30 metres of 14mm nylon octoplait (8-strand) warp. Octoplait is necessary here. Unlike 3-strand nylon, it does not twist or hockle. It also flakes perfectly into the tight anchor locker of the Ballad.
Windlass and Deck Hardware
Many Albin Ballads left the factory with tiny flush bow fittings and no windlass. Hauling 50kg of ground tackle by hand requires heavy leather gloves and a braced lower back.
