Can you install a bimini and solar panels on a Hallberg-Rassy 34?

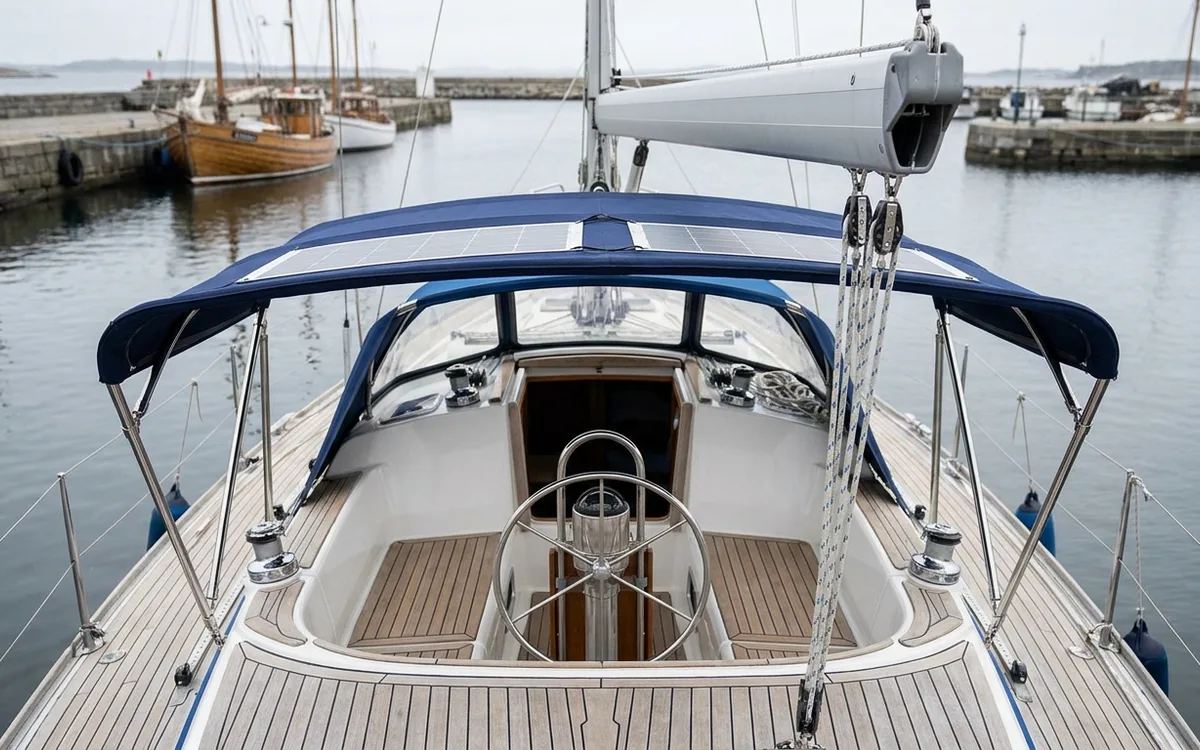

Yes, you can install a bimini and solar panels on a Hallberg-Rassy 34, but you rarely see them because the factory fixed windscreen and cockpit mainsheet track make off-the-shelf solutions impossible. You will need a custom stainless steel frame tailored to clear the boom and mainsheet, paired with either flexible solar panels sewn into the canvas or a dedicated stern arch.

HR34 design challenges

Germán Frers designed the Hallberg-Rassy 34 for northern European waters. A heavy sprayhood and fixed glass windscreen keep crews warm and dry. Sun protection was an afterthought. The main challenge in retrofitting a bimini is the mainsheet track. It sits in the middle of the cockpit, just forward of the steering pedestal. The boom on the HR34 is also low to maximise sail area, leaving limited headroom for a tall bimini frame. To fit a bimini, the frame must sit entirely aft of the mainsheet track to cover only the helm, or it needs a split design with a slot in the canvas to allow the mainsheet to travel.

Designing a custom bimini

You cannot buy a universal bimini for this boat. You must hire a local canvas maker to build a bespoke frame using 25mm or 32mm 316L marine-grade stainless steel tubing. Expect to pay between £2,000 and £3,500 for a quality custom frame and acrylic canvas cover.

When measuring up, you must account for four factors:

• Boom clearance: Ensure the bimini frame clears the boom when the mainsail is flaked and the boom rests on the topping lift or rod kicker. You may need to sacrifice an inch or two of standing headroom at the helm.
• Mainsheet travel: Most owners opt for a shorter bimini that starts just aft of the track. If you want full cockpit shade, the canvas needs a reinforced slit for the mainsheet. This design can let rain in.
• Backstay: The HR34 has an adjustable backstay that sits far forward. The bimini canvas needs a zipped collar to allow the backstay wire to pass through without chafing.
• Windscreen connection: For heavy weather, a canvas maker can build a removable infill panel. This bridges the gap between the aft edge of the fixed windscreen sprayhood and the forward edge of the bimini.
