Why does a Yamaha 90 HP outboard die when engaging gear?
I have a Yamaha 90 HP outboard that starts perfectly and idles fine in neutral. But the moment I push the throttle forward to engage forward or reverse gear, it chokes and dies. What should I check first?
Answer

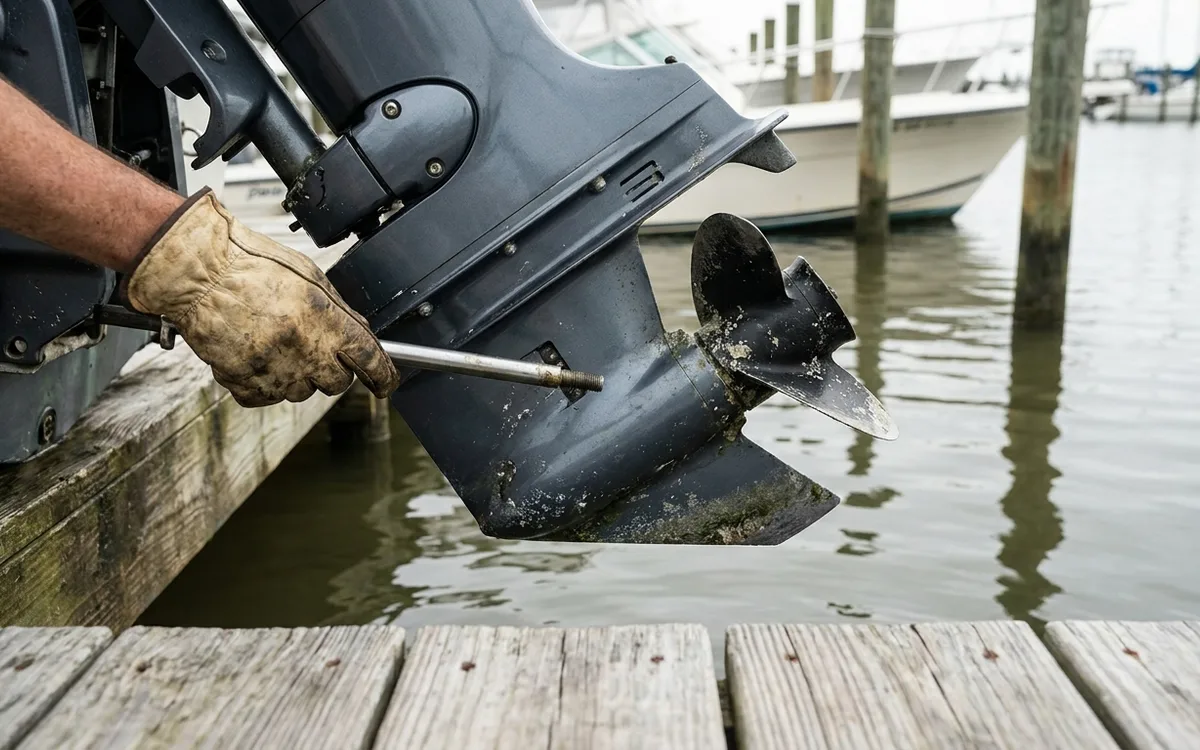

A Yamaha 90 HP outboard usually dies when engaging gear because the engine cannot handle the sudden load of the propeller, pointing directly to fuel starvation, a low idle speed, or a bound propeller shaft. To fix it, verify your idle RPM in neutral before checking the fuel delivery system for blocked pilot jets or a clogged VST filter.
Idle Speed and ISC Valve
Shifting an outboard into gear subjects the engine to immediate resistance from the water and the gearbox. A low idle speed means this sudden load stalls the motor instantly. A healthy Yamaha 90 HP idles at 700 to 800 RPM in neutral.
On a four-stroke Yamaha F90 (2005 onwards), the Idle Speed Control (ISC) valve often causes this fault. This electronic component regulates the air bypassing the throttle plate to maintain a steady idle. Carbon blow-by clogs the valve over time. It sticks closed and drops the idle to 500 RPM or lower. Remove the ISC valve with a Phillips screwdriver, soak the plunger in carburettor cleaner, and wipe out the housing. Older two-stroke Yamaha 90TLR engines use a manual idle stop screw on the throttle linkage. Do not adjust this screw until you rule out fuel issues.
Fuel Delivery and VST Filters
Fuel starvation remains the leading cause of an engine idling fine but dying under load. The outboard receives enough petrol to tick over without resistance, but lacks the volume to generate torque.
- Four-stroke F90 models: The Vapour Separator Tank (VST) is a frequent culprit. The high-pressure fuel pump sits inside this tank, drawing petrol through a tiny mesh filter at the base. Ethanol-blended fuel leaves a gummy residue that blocks this filter. A replacement VST filter costs about £30. Stripping the intake manifold to access it takes roughly two hours.
- Two-stroke 90 models: These engines rely on three carburettors. The pilot jets feature microscopic orifices that clog easily. A single blocked pilot jet prevents that cylinder from firing properly at idle. The engine attempts to spin the propeller on two cylinders instead of three, lacking the required torque. Remove the carburettors, soak the jets in an ultrasonic cleaner, and clear the passages with compressed air.
