What is the coolant level sensor part number for a 2021 Volvo Penta V6-280?

The coolant level sensor for a 2021 Volvo Penta V6-280 with a closed cooling system is part number 21274311, costing around £55. Before ordering a replacement, check that the magnetic float inside the expansion tank has not stuck with scale or sludge, as this causes most false EVC alarms.

Identifying the Part

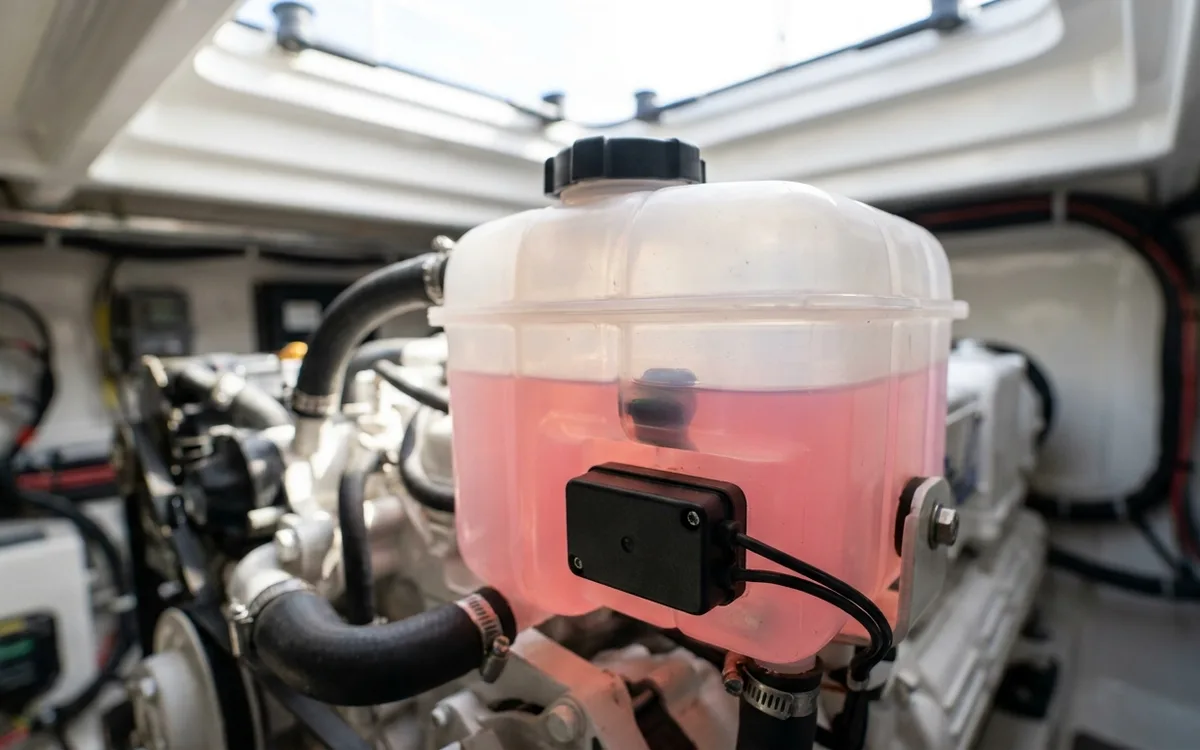

The 2021 Volvo Penta V6-280 uses a Gen V GM aluminium block with standard freshwater cooling. The sensor sits at the base of the plastic expansion tank. The standalone switch is part 21274311. On specific EVC setups, Volvo Penta updated the tank assembly (parts 23196924 or 23812870) to include a pre-installed sensor. Verify your engine serial number against the parts diagrams. For a 2021 block, 21274311 is the correct switch.

Why Sensors Fail

False low coolant warnings on the Garmin Glass Cockpit or EVC tachometer plague these engines. The internal magnetic float inside the tank usually fails before the electrical switch. The sensor is a simple magnetic reed switch. It relies on the float dropping to trigger the alarm. Engine vibration can also break the internal contacts of the reed switch over time.

Run these two checks before buying parts:

• Check the float: Remove the tank cap. Use a clean plastic probe or wooden dowel to push the float down inside the tank. It should bob back up smoothly. If it sticks, remove the tank and clean it with warm water and a mild descaler.
• Test the wiring: Unplug the two pin Deutsch connector from the sensor. Bridge the two pins on the harness side with a split pin or a small piece of wire. If the EVC alarm state changes on your screen, the wiring to the helm works. This confirms the fault lies at the tank.

Replacing the Sensor

Never open the expansion tank cap or remove the sensor while the engine is hot. Pressurised boiling coolant causes severe scalding.

Replacing a dead sensor takes ten minutes:

1. Let the engine cool completely. Slowly remove the pressure cap to vent residual pressure.
2. Draw the coolant level down below the sensor port using a clean syringe or turkey baster. This prevents fluid spilling into the bilge.
3. Disconnect the wiring plug. Check for green corrosion on the pins and spray with contact cleaner if needed.
4. Unscrew the sensor using a 22mm deep socket or a spanner. Plastic tank threads strip easily, so apply gentle pressure.
5. Fit the new sensor (part 21274311). Seat the rubber O-ring correctly. Hand tighten the sensor, then add a quarter turn. Maximum torque is 3 Nm.
6. Refill the tank to the MAX line. The 2021 engine requires Volvo Penta VCS yellow coolant. Never mix this with older green coolant. The combination forms a thick sludge that blocks the heat exchanger.
