What engine was standard in a Hallberg-Rassy 342 and what are its weak points?
I'm looking at buying a 2008 Hallberg-Rassy 342. Can you tell me exactly what engine Volvo Penta supplied as standard for this model? I also need to know what common faults or weak points I should be looking out for during the engine inspection.
Answer

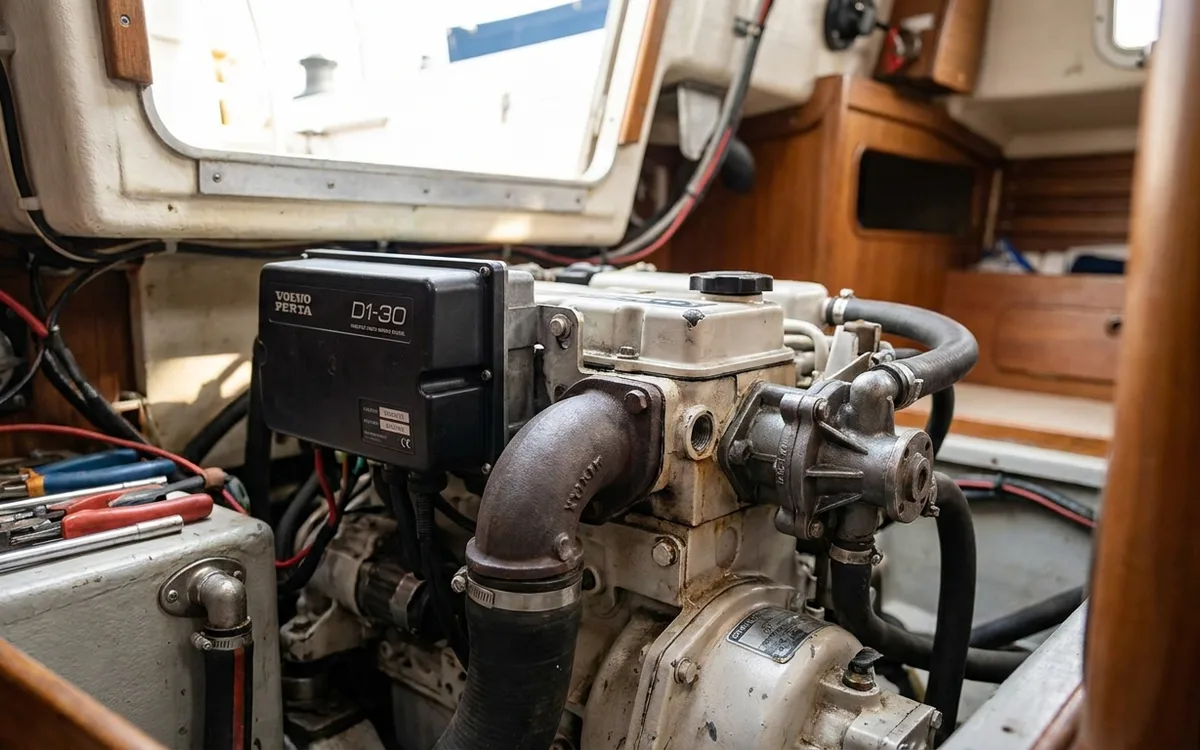

The standard engine fitted to the Hallberg-Rassy 342 throughout its production run from 2005 to 2018 is the Volvo Penta D1-30, a 29hp three-cylinder diesel mated to a 130S saildrive. This smooth-running unit suffers from three main weak points, namely the electronic MDI control box, corrosion in the cast-iron exhaust elbow, and raw water pump leaks.
MDI Unit Failures
The Mechanical Diesel Interface (MDI) is a black electronic box mounted on top of the engine block. It controls starting, stopping, and gauge feeds. Early versions of this unit fail frequently due to heat and vibration. Symptoms include the engine refusing to start, dying suddenly while underway, or the starter motor engaging on its own while the engine is running. Always isolate the domestic and engine batteries before doing any electrical work on the starter or MDI circuit.
Volvo Penta has issued several recall campaigns and superseded the part number at least five times. When inspecting the boat, look at the sticker on the MDI box and check the part number against the latest Volvo revision (currently 23231607). If you find an old unit, budget around £650 for a replacement. Many owners relocate the new box off the engine block using an extension harness to protect it from heat and vibration.
Exhaust Mixing Elbow Blockages
Like many modern Volvo Pentas, the D1-30 uses a cast-iron exhaust mixing elbow. The point where hot exhaust gases meet raw water is highly prone to carbon build-up and internal corrosion. Over 500 to 800 engine hours, or 5 to 7 years, the internal diameter restricts significantly.
A blocked elbow creates excessive back-pressure. You will notice the engine failing to reach its maximum 3,200 rpm under load, black smoke at cruising speeds, or a creeping temperature gauge. An original Volvo cast-iron replacement costs roughly £250. Many owners fit an aftermarket stainless steel elbow for around £160 instead, as this will outlast the OEM part entirely.
Water Pump Weeps
The raw water pump on the D1-30 is gear-driven and sits low on the front of the timing cover. The internal lip seals wear out, causing salt water to weep from the tell-tale hole. This water drips directly onto the front of the engine block and the engine mounts. The resulting saltwater bath causes rapid rust and degrades the rubber mountings.
