What engine was fitted as standard in a Hallberg-Rassy 40, and what are its known weak points?

The standard engine fitted to the Hallberg-Rassy 40 throughout its main production run (2002 to 2018) was the 55hp Volvo Penta D2-55. While this is a reliable 2.2-litre block based on a proven Perkins/Shibaura design, it suffers from well-documented peripheral issues, notably exhaust elbow blockages and electrical faults on later versions.

Engine Specs and Variants

The D2-55 is a naturally aspirated four-cylinder marine diesel. It produces high torque at low revs. This suits the 10-tonne displacement of the HR 40 perfectly. The engine drives a conventional shaft, typically through a Volvo MS25A gearbox or a ZF equivalent, connecting to the propshaft via a flexible coupling.

Some HR 40s feature the Volvo Penta D2-75. This uses the same block but adds a turbocharger to produce 75hp. The standard 55hp unit provides ample power for most conditions. Sticking with the naturally aspirated engine avoids the extra maintenance of a turbocharger.

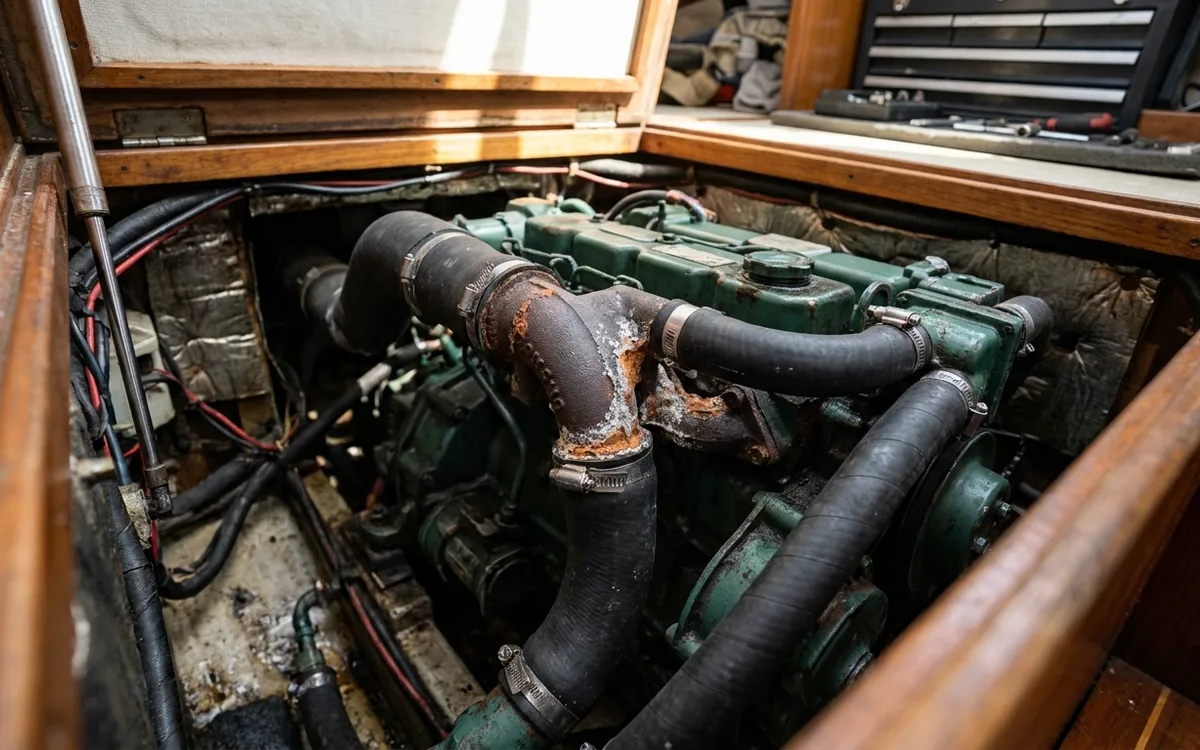

The Exhaust Mixing Elbow

The most common mechanical weak point on the D2-55 is the cast iron exhaust mixing elbow. Raw water injects into the hot exhaust gases here. Over time, the internal water passages corrode. They clog with hard carbon deposits and rust.

• Symptoms: A gradual loss of maximum engine RPM, increased black smoke under load, and eventual engine overheating.
• The Risk: If the internal wall of the elbow fails, raw water runs backwards down the exhaust manifold directly into the engine cylinders. This causes hydrostatic lock.
• The Fix: Treat the standard cast iron elbow as a consumable item. Replace it every five to seven years. Fit a fabricated stainless steel aftermarket elbow instead of the OEM cast iron part. These cost around £180 from suppliers like Parts4Engines and outlast the original.

MDI Unit Failures

Boats built after 2007 usually feature the D2-55F variant. This version introduced Volvo Penta's Mechanical Diesel Interface (MDI). This black box mounts directly on the side of the engine block. It controls all starting, stopping, and gauge functions.

These MDI units are fragile. Engine vibration and heat crack the internal circuit boards. A failed MDI causes erratic behaviour. The engine might refuse to start or refuse to stop. The starter motor can even engage by itself while the engine runs at cruising speed. Volvo issued multiple updated versions of this box to solve the problem. Check the part number printed on the box. If you find an early generation, budget £250 for the latest version. Keep the old one wrapped in foil as an emergency spare. Mount the new MDI off the engine on a nearby bulkhead to isolate it from vibration.
