How Do Mercury Outboards Work and What Are the Main Parts?

Mercury outboards operate by converting fuel into rotational energy in a top-mounted powerhead, which drives a vertical driveshaft down through the midsection to turn a propeller via a gearbox in the lower unit. Modern Mercury four-strokes rely on electronic fuel injection (EFI) and an Engine Control Module (ECM) to precisely manage the air-fuel mix, ensuring reliable starting and efficient running across the rev range.

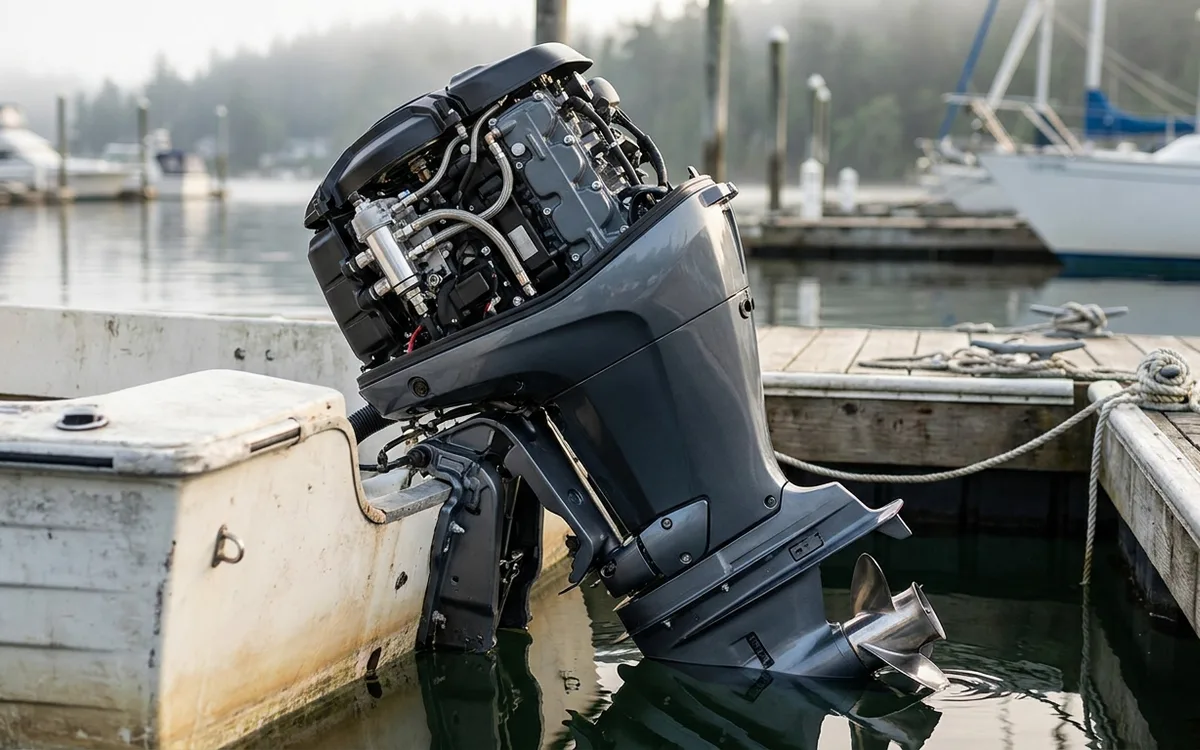

The Powerhead and Fuel Injection

At the top of the outboard sits the powerhead. This is a car-style engine block mounted vertically. Look at a popular model like the Mercury 60hp FourStroke and you will find a 995cc inline four-cylinder block. It uses a standard four-stroke cycle of intake, compression, power and exhaust. The ECM acts as the brain. It reads sensors for throttle position, engine temperature and manifold pressure to dictate exactly how much fuel the EFI system sprays into the cylinders. This setup eliminates the choke and makes cold starts practically instantaneous.

Fuel delivery happens in two stages. A mechanical lift pump pulls petrol from the boat tank and passes it through a water-separating fuel filter. An electric high-pressure fuel pump then pushes the fuel into the injector rail. Mercury engines also feature the SmartCraft warning system. If oil pressure drops or the engine overheats, the ECM sounds a warning horn at the helm and automatically reduces engine RPM to protect the block from catastrophic failure.

Midsection Cooling and Exhaust

Below the powerhead is the midsection, housing the driveshaft, exhaust tube and water pump. As the engine runs, the driveshaft spins continuously. Attached to this shaft just above the lower unit is a rubber water pump impeller. This impeller draws raw water in through the grilles on the lower unit and pumps it up into the engine block water jackets to prevent overheating. Never start the outboard out of the water without a flushing muff attached. The rubber impeller will melt against its stainless steel housing within seconds.

Always check the tell-tale (the small, visible stream of water exiting the rear of the cowling) as soon as you start the engine to confirm the pump is working. The midsection also acts as the exhaust pathway. Burnt gases travel down the exhaust tube and exit through the centre of the propeller hub. This keeps noise and fumes underwater and away from the boat.

Lower Unit Gears and Drive

The lower unit translates the vertical rotation of the driveshaft into the horizontal rotation of the propeller shaft. It contains three main bevel gears: a pinion gear on the driveshaft, plus a forward and a reverse gear on the prop shaft. A sliding dog clutch, operated by the throttle binnacle via the shift cable, locks into either the forward or reverse gear to dictate the boat direction.
