How do marine boat engines actually work?
I'm relatively new to boating and looking at buying a 30-foot cruiser. I hear terms like inboard diesel, sterndrive, and outboard thrown around constantly. Could you explain exactly how these boat engines work and what drives the propeller?
Answer
Marine engines work by burning fuel inside cylinders to push pistons down, turning a crankshaft that converts this up-and-down motion into rotational force. This rotational force is then passed through a marine gearbox to a propeller shaft, sterndrive or outboard lower unit to spin a propeller and push the boat through the water.
Inboard and Outboard Powerplants
Marine engines are internal combustion engines adapted for a wet saltwater environment. You will encounter two main types on the water.
Inboard Diesels: These power sailing yachts and motor cruisers over 30 feet. Brands like Volvo Penta, Yanmar and Beta Marine dominate the market. They rely on compression ignition. The engine squeezes air inside the cylinder until it reaches a temperature high enough to ignite the injected diesel fuel. These blocks are heavy and produce massive low-end torque to push displacement hulls through rough seas.

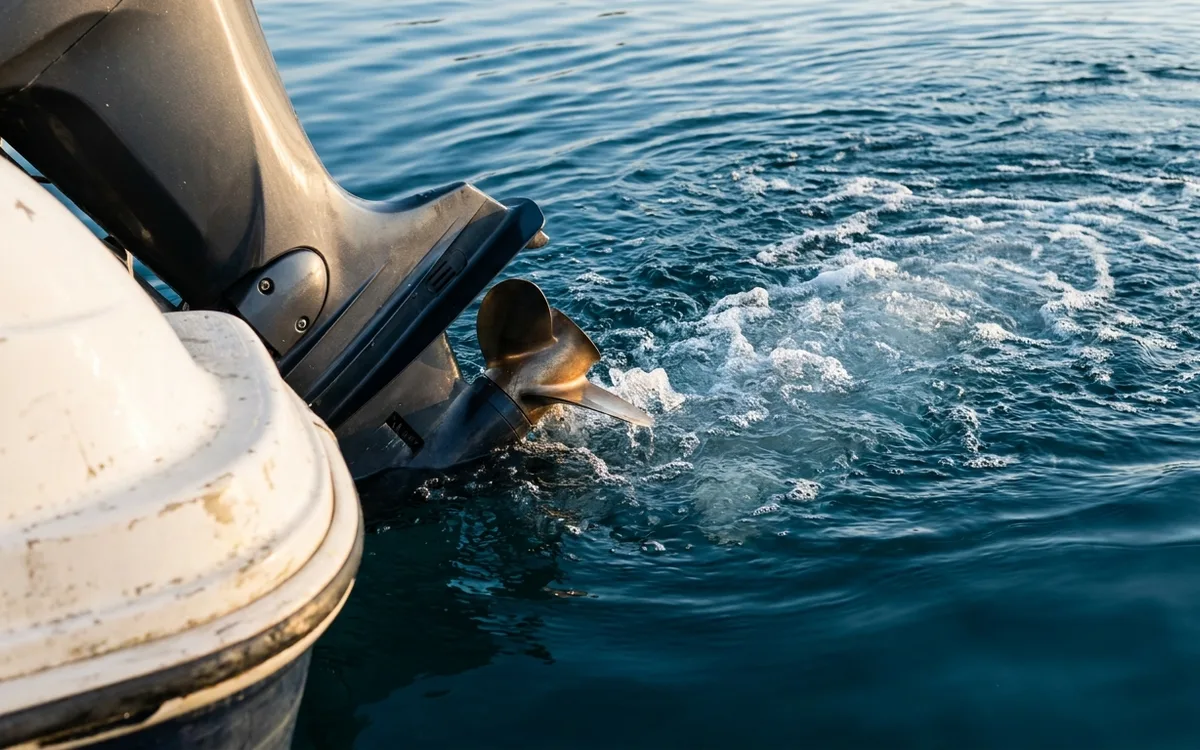

Outboards: These self-contained petrol engines bolt directly to the transom. Yamaha, Mercury and Suzuki are standard brands. They use spark plugs to ignite the petrol. Outboards run at high revs and contain the engine block, gearbox and propeller in a single unit.
Transferring Power to Water
Boats lack multiple gears. A marine gearbox provides Forward, Neutral and Reverse with a fixed gear ratio around 2:1 or 2.5:1. Rotational power reaches the water through specific drive systems.
- Shaft Drive: The gearbox connects to a straight stainless steel propeller shaft exiting the hull bottom through a watertight seal. This traditional setup takes up interior space and increases the draught.
- Sterndrive: The engine sits inside the hull. The gearbox and propeller live in a steerable leg mounted outside on the transom. MerCruiser and Volvo Penta Aquamatic are common examples. Owners must check the rubber sterndrive bellows annually for cracks. A failure here lets seawater flood in and sink the vessel.
- Saildrive: Modern sailing yachts like Beneteau or Bavaria use this system. The inboard diesel sits directly over a fixed cast-aluminium leg dropping straight down through the hull.
