How do I use a Rinda marine diagnostic scan tool on my boat engine?
I've got a twin engine setup (MerCruiser 5.0 MPIs from 2004) and they are throwing alarms. I bought a Rinda TechMate Pro scanner but I'm not entirely sure where to plug it in or what sequence to follow without messing up the ECU. Can you walk me through how to actually use this thing?
Answer
To use a Rinda diagnostic tool, locate the Data Link Connector (DLC) on the engine harness, plug in the correct adapter for your Engine Control Module (ECM), and turn the ignition key to the ON position without starting the engine. The scanner will then power up, allowing you to read active fault codes, view live sensor data and clear historical alarms.
Locating the DLC
Unlike cars, boats lack a standard OBD2 port tucked under the helm. The diagnostic plug sits directly on the engine harness. MerCruiser, Volvo Penta, Crusader and PCM engines from the 1990s through to the mid-2000s run Delphi MEFI 1 through 6 systems. These use a flat 10-pin connector.
An early 2000s MerCruiser MPI likely runs a Motorola ECM 555 with a square 4-pin plug. Newer catalyst engines from 2008 onwards utilise a 6-pin CAN bus connector. Look for this plug near the ECM, the main circuit breaker or the relay box at the top rear of the engine block. A plastic blanking cap keeps out salt and moisture.
Connecting the Scanner
Always ensure the ignition key is in the OFF position before connecting or disconnecting the scanner. This prevents voltage spikes from damaging the ECM.
Rinda produces two main systems. The handheld TechMate Pro costs around £450, while the PC-based Diacom software costs around £600. Both require specific adapter cables priced at roughly £35 each. Common adapters for inboard petrol engines include:
- MEFI (Part #94006): A flat 10-pin plug used on most 1990s to mid-2000s GM blocks.
- ECM 555 (Part #94005): A square 4-pin plug used on early 2000s MerCruiser MPI engines.
- CAN Bus (Part #94029): A 6-pin plug used on 2008 and newer catalyst engines.

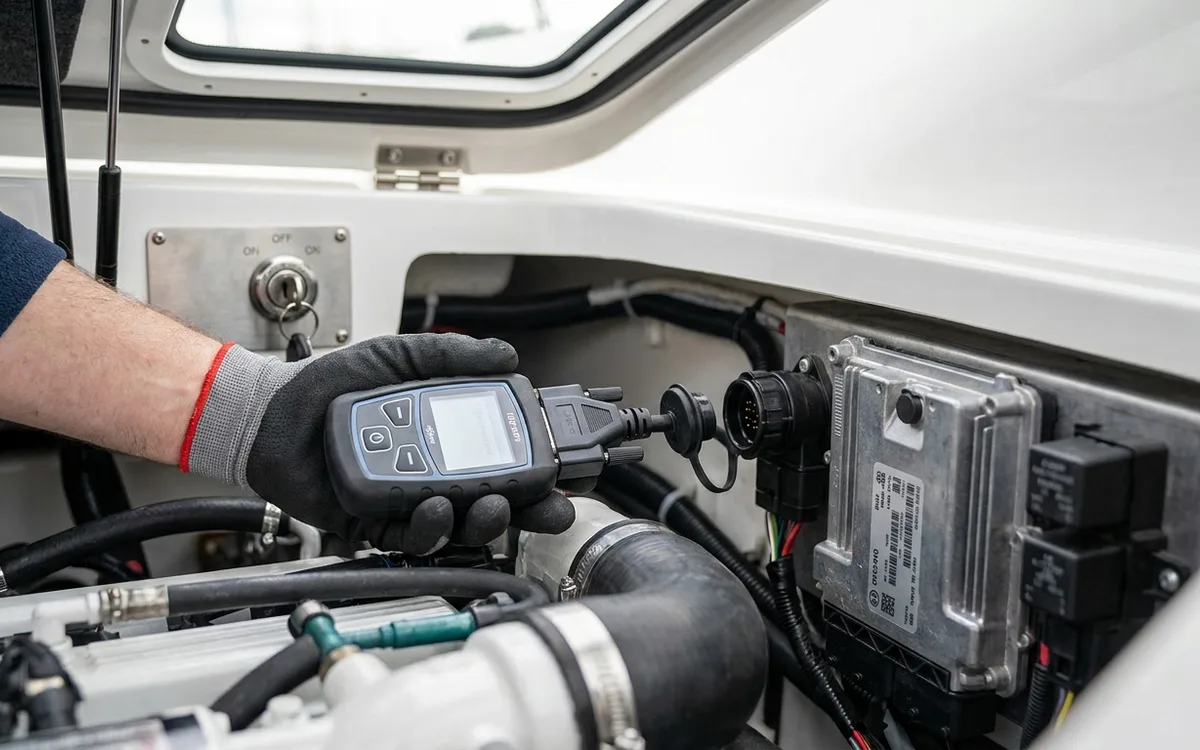

Remove the blanking cap from the engine DLC. Plug in the adapter cable and connect the other end to the scanner or laptop interface.
Reading and Clearing Codes
Follow this exact sequence to pull codes without confusing the engine computer:
- Turn the ignition key to the ON position to power up the system. Do not crank the starter motor.
- Wait for the TechMate Pro screen to boot, then select the engine manufacturer (e.g. Mercury Marine).
- Select the specific ECM type from the menu (such as ECM 555).
- Navigate to the Fault Codes or DTCs menu to view active and history codes.
