How do I replace the saildrive diaphragm on a Hallberg-Rassy 39?

Check the transmission before ordering parts: a Hallberg-Rassy 39 normally has a conventional propeller shaft, so the rubber component may be a shaft seal or stern-tube bellows rather than a saildrive diaphragm. If your boat has a saildrive conversion, replacing the main diaphragm requires hauling out, supporting the machinery and dismantling the drive according to the instructions for that model.

Identify the seal first

Look behind the engine. A shaft-drive installation has a gearbox output flange connected to a separate shaft running aft through a stern tube. A saildrive has a substantial gearbox above a vertical leg that passes through a large rubber diaphragm in the hull.

The distinction determines both the parts and the procedure. Do not order a Volvo Penta 120S diaphragm simply because another Hallberg-Rassy owner fitted one: the HR 39's original machinery, replacement engines and individual conversions can differ.

• Shaft drive: identify the seal manufacturer, shaft diameter and stern-tube outside diameter. Volvo Penta rubber lip seals, mechanical face seals and traditional stuffing boxes each require different work.
• Saildrive: photograph the identification plate and record the complete model suffix and serial number.
• Service history: find the last replacement invoice. The rubber's appearance alone cannot establish its age.

Seven years is the familiar replacement interval for Volvo Penta saildrive diaphragms; confirm the requirement for your model. Do not automatically apply that interval to a different shaft-seal design.

Prepare for diaphragm replacement

Get the workshop manual and the instructions supplied with the correct diaphragm kit before dismantling anything. The structural diaphragm inside the boat and the thin external rubber fairing around the leg are separate parts. Replacing the fairing does not renew the watertight seal.

Have the boat securely supported ashore and isolate the batteries. Support the engine and drive independently before releasing mounts or coupling fasteners.

You need suitable lifting equipment, a torque wrench covering the specified fasteners, oil-catching containers and enough access to separate the engine and drive. Inspect a converted HR 39's installation carefully: custom beds and restricted access may determine whether the engine must move forward or come out.

Order the main diaphragm, the required joint seals and O-rings, and any fasteners specified for renewal. Inspect the clamping ring before starting. Corrosion or damaged threads can delay reassembly.

Remove and refit the saildrive

1. Remove the propeller and any components that obstruct withdrawal, following the drive manual. Drain the transmission oil into a clean container and check for water contamination or metal particles.
2. Label and disconnect the gear cable, cooling-water connection and any other services that prevent movement. Record mount positions and keep adjustment shims in order.
3. Support both assemblies, release the specified connections and separate the drive from the engine. If it sticks, check for overlooked fasteners and loaded splines. Do not drive wedges between mating faces.

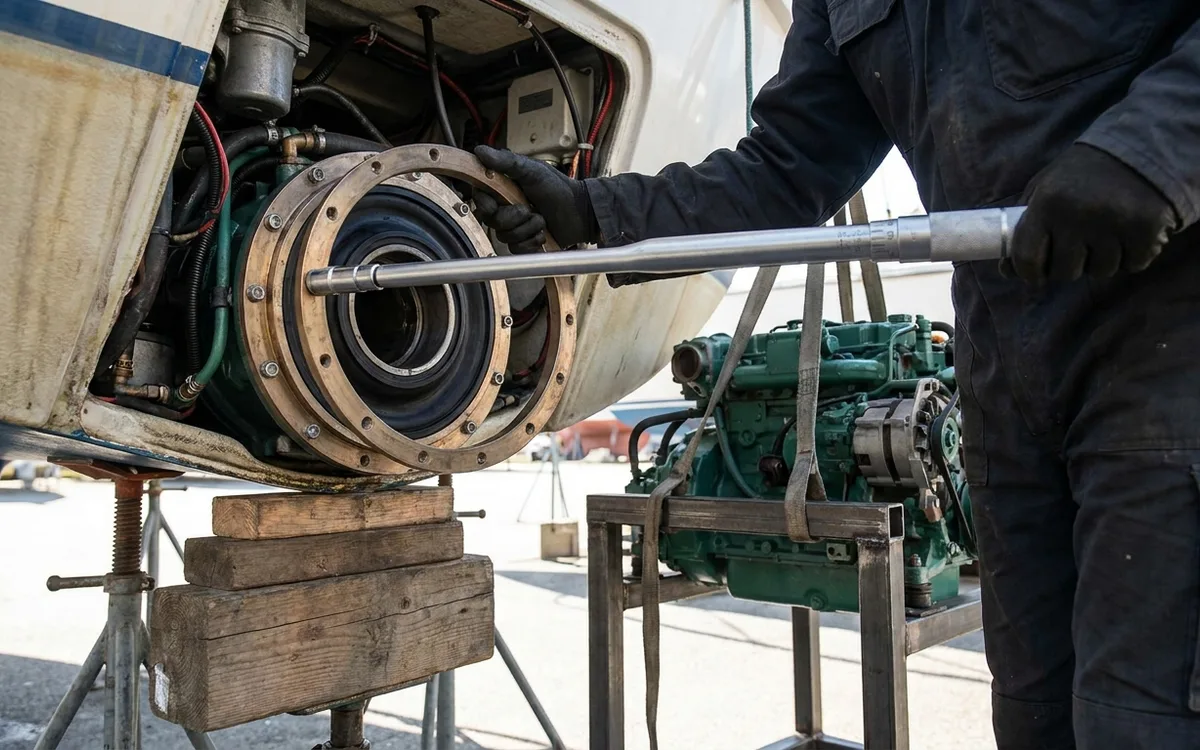

4. Release the diaphragm retaining ring and remove or split the drive assembly as the model requires. Keep dirt out of exposed bearings and gear housings.
5. Clean and inspect the hull seating, retaining ring and drive sealing surfaces. Investigate corrosion, cracks or damaged laminate before fitting the new rubber.
6. Fit the diaphragm in the specified orientation, renew disturbed seals and tighten fasteners in the prescribed sequence to the torque values for your model.
