How do I replace the saildrive diaphragm on a Dehler 34?

Replacing the saildrive diaphragm on a Dehler 34 requires hauling out, supporting the engine and drive independently, and dismantling enough of the installation to fit the correct hull-seal kit. Identify the saildrive model first: Dehler 34s span several generations and may have replacement engines, so the boat name alone cannot establish the parts, tightening torques or replacement interval.

Identify the drive and seal

Find the identification plate on the saildrive gearbox inside the engine compartment. Record the model and serial number, photograph the installation and check invoices for the last diaphragm replacement. Order parts against the drive identification rather than asking for a "Dehler 34 seal".

Distinguish these two rubber components before dismantling anything:

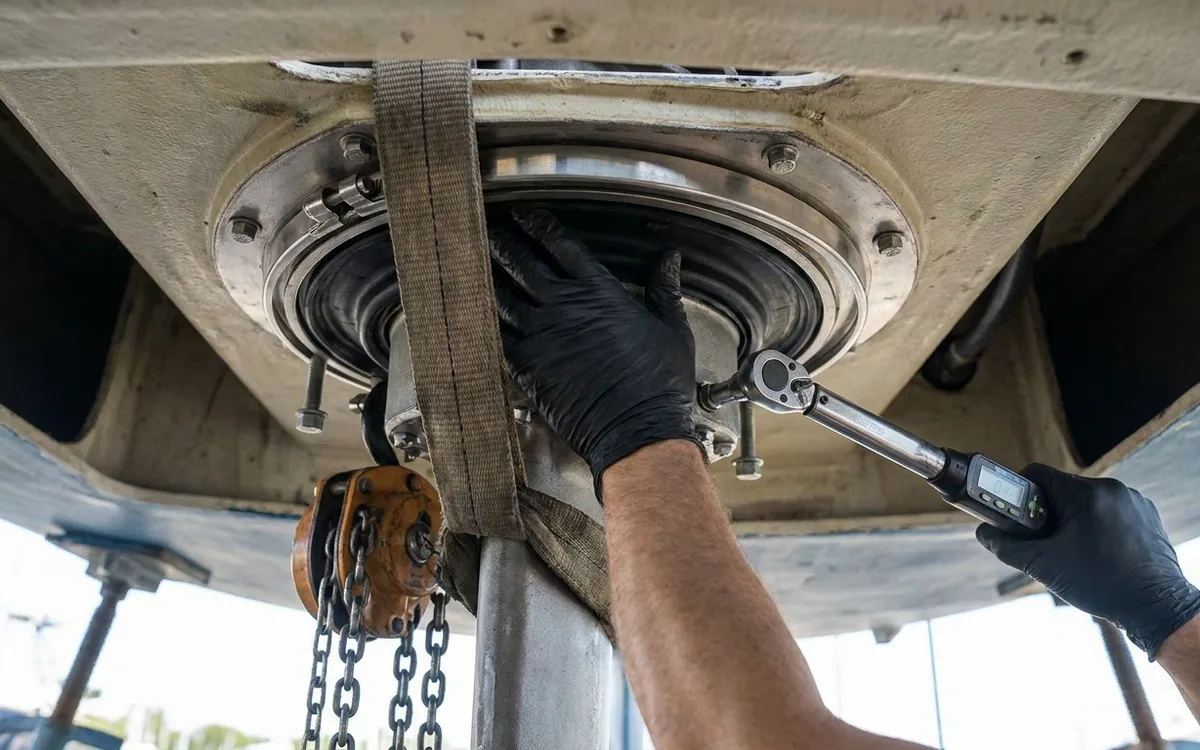

• Main diaphragm: the substantial rubber seal clamped between the saildrive assembly and the hull mounting structure. It keeps seawater outside.
• External fairing flap: the thin rubber skirt glued beneath the hull around the leg. A loose flap needs attention, but does not itself mean the main diaphragm has failed.

Volvo Penta commonly specifies replacement of its saildrive rubber seal every seven years; confirm the requirement for your drive. Yanmar installations can have two diaphragms with a water-detection sensor between them. Yanmar calls for annual inspection of the installation and sealing condition, and directs owners to its marine dealer for diaphragm replacement.

Prepare for lifting and dismantling

Arrange secure boatyard blocking, enough access beneath the leg and a suitable lifting arrangement inside the boat. Isolate the batteries and close the fuel supply. Agree the engine and drive support arrangement with the yard before releasing any mountings.

Access through a Dehler 34's companionway, engine enclosure and adjoining cabin varies with generation and interior layout. Before starting, establish whether the engine can move far enough forwards, which joinery needs removing and how the drive assembly will leave the boat.

Have these ready:

• The correct genuine or manufacturer-approved diaphragm kit and its fitting instructions.
• Specified gaskets, O-rings, locking components and any bolts identified as single-use.
• A torque wrench covering the values in the drive workshop manual.
• The correct saildrive oil, drain-plug seals and any specified assembly lubricant or adhesive.

Budget several hundred pounds for the seal kit and potentially a four-figure professional bill once labour, lifting and associated repairs are included. Obtain an itemised quote. Restricted access, seized fasteners and corroded clamping parts can change the cost substantially.

Remove the drive and diaphragm

Follow the drive workshop manual for the exact dismantling sequence. The usual outline is:
