How do I rebuild a Volvo Penta steering actuator, and what parts and steps are involved?

Some Volvo Penta hydraulic steering actuators can be rebuilt if the exact unit has a documented repair procedure and suitable replacement parts. Identify the actuator and confirm the leak or steering fault first, as conventional sterndrive power assistance, separate hydraulic steering cylinders and IPS steering units need different repairs.

Identify the unit and fault

Start with the engine, drive and transom assembly serial numbers, then record any identification on the actuator itself. The engine model alone rarely identifies the steering assembly reliably, particularly on a boat that has been repowered.

Many conventional sterndrive installations use a mechanical steering cable to operate a hydraulic power-assist actuator. Others use hydraulic helm pumps and cylinders. IPS uses electronically controlled steering equipment. Do not apply a conventional cylinder resealing procedure to an IPS unit; diagnosis, replacement and calibration require the relevant service instructions and diagnostic equipment.

Clean and dry the assembly, then trace any fresh oil. Check:

• Hose unions and hoses: oil running down from a connection can look like a failed rod seal.
• Rod exit and housing joints: fresh oil here suggests a seal or housing problem.
• Reservoir level and oil condition: low oil, foaming or contamination can cause noisy, uneven assistance.
• Cable, pivots and steering linkage: stiffness or play may remain after the hydraulic unit is repaired.

Steering that creeps or assists unevenly can indicate internal leakage or a control valve fault, rather than an external seal failure alone.

Choose the correct parts

Use the parts diagram for the assembly's serial number to establish whether Volvo Penta supplies internal service parts or lists only a complete actuator. A seal kit advertised for another Volvo Penta actuator does not prove compatibility.

Depending on the design, a rebuild may involve:

• Rod seal, external wiper and gland O-rings.
• Piston seals, backup rings and guide or wear rings.
• Specified valve seals, where valve servicing is permitted.
• New locking devices and any disturbed sealing washers or O-rings at hose connections.
• The specified steering fluid, plus replacement hoses or bushes if inspection reveals damage.

Have clean blanking plugs, a drain tray, soft vice jaws, non-scratching seal tools and a suitable torque wrench ready. Obtain the torque values for the actuator, mounting hardware and hydraulic fittings. There is no safe universal torque setting for Volvo Penta steering actuators.

Remove and inspect the actuator

Before disconnecting anything, stop the engine, isolate starting power, relieve hydraulic pressure as specified and secure the drive or rudder against unexpected movement.

1. Photograph the installation, label hoses and record the linkage arrangement. Clean around every connection before opening it.

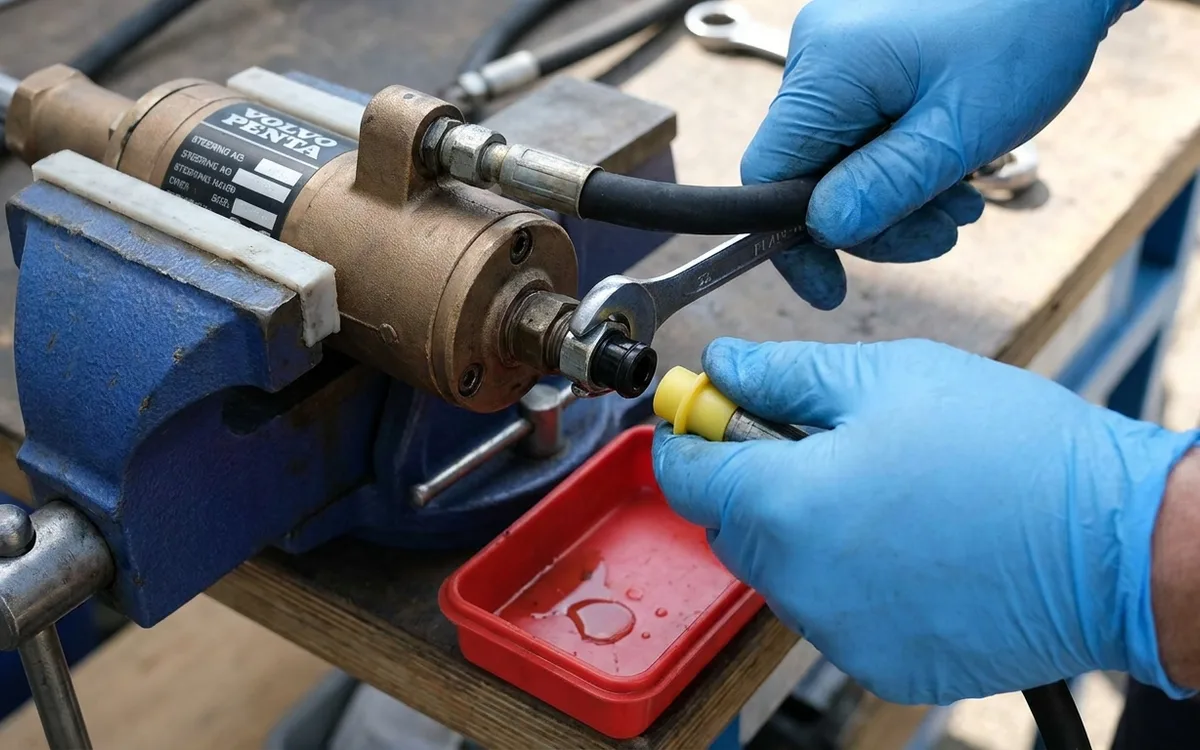

2. Collect escaping fluid and immediately cap hoses and ports with clean hydraulic plugs. Support the actuator while removing its linkage and mountings.
3. Clean the exterior again, then dismantle the actuator on a clean bench, following the workshop procedure. Some assemblies contain springs, retainers or valve adjustments that require specific tools or settings.
4. Lay components out in order and photograph seal orientation before removal. Keep matched valve components together.
5. Inspect the rod, bore, gland, piston, bushes and mounting eyes before ordering additional parts.
