How do I flush and refill the cooling system on a Freedom boat with low, muddy coolant?
While checking the engine on my Freedom, I found the coolant in the expansion tank was low and muddy brown. I have removed and emptied the tank, but I would like to flush the cooling circuit before refilling it. Where should I drain it, and how do I get the air out afterwards?
Answer
Drain and flush the engine's closed freshwater cooling circuit, then refill with the manufacturer's specified coolant and bleed out trapped air. First check whether the brown material is loose sediment or oily sludge: low, muddy coolant can indicate corrosion, incompatible antifreeze or a leak that needs attention before refilling.
Identify the engine and contamination
The engine model matters more than the Freedom name, as installations and replacement engines vary by boat and year. Read the engine identification plate and check its manual for drain locations, coolant specification, capacity and bleeding instructions.
Remove a pressure cap or open a drain only when the engine is completely cold. Collect all coolant for proper disposal.
A heat-exchanger-cooled engine has two separate circuits. Coolant flows through the engine and the freshwater side of the heat exchanger; seawater passes through the other side and leaves through the exhaust. Connecting a bucket to the seawater intake will not flush muddy engine coolant.
- Brown sediment: suggests corrosion, neglected coolant or deposits from unsuitable water.
- Thick gel or clumps: can result from mixing incompatible coolant formulations.
- Greasy sludge or an oil film: calls for investigation into oil contamination before repeated flushing.
Check hose joints, the coolant pump, heat-exchanger end fittings and pressure cap for wetness or dried deposits. Inspect the small hose between the filler neck and recovery bottle. A split or blockage can prevent coolant returning as the engine cools.
Drain the freshwater circuit
Emptying the expansion tank alone leaves most of the old coolant inside the engine. Check whether yours is a pressurised header tank carrying the system filler cap, or an unpressurised recovery bottle connected to a separate pressure cap on the engine.
- Clean the removed tank with water and a soft bottle brush. Rinse thoroughly and replace it if cracked or badly degraded.
- Open the cold system's filler cap and place a suitable container beneath the drains specified in the manual.

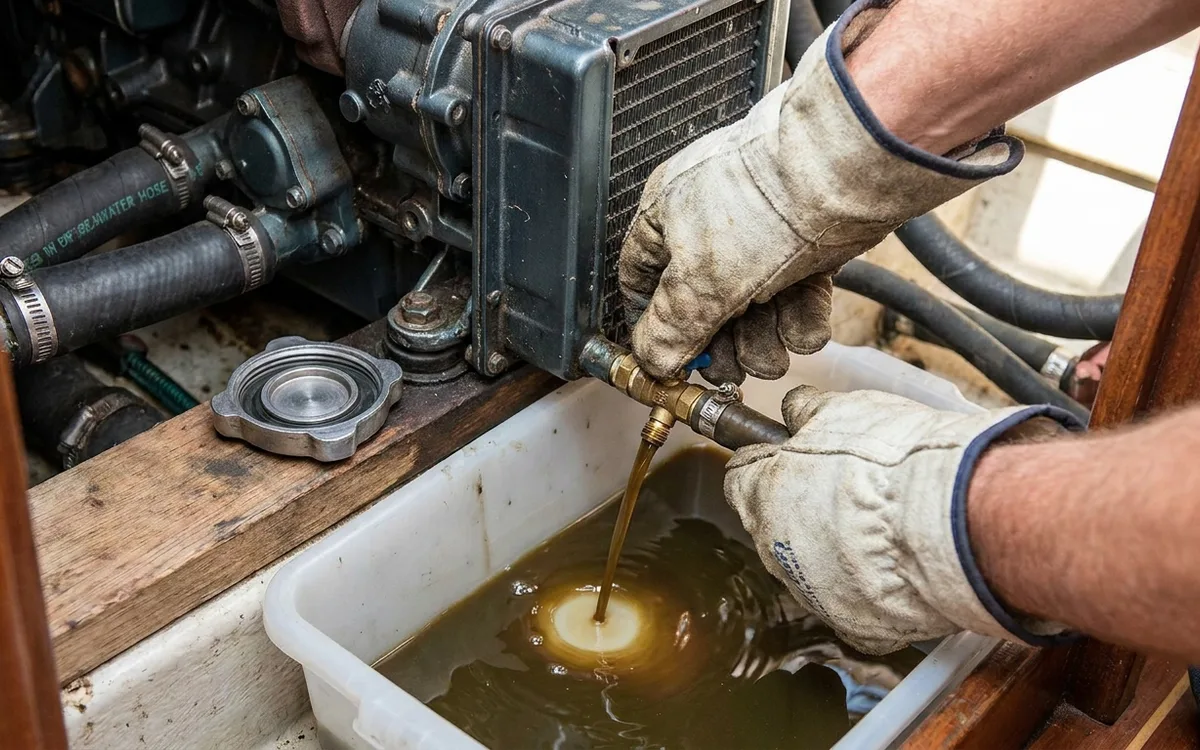

- Drain the engine block and freshwater side of the heat exchanger. Some engines have drain plugs or taps; others require a lower hose to be removed.
- If fitted, drain the engine coolant hoses serving the domestic hot-water cylinder, following the installation instructions.
Do not loosen unidentified bolts: some retain covers or other components. Refit plugs using the specified seals and tightening torque. There is no safe universal torque for different drain fittings.
Flush out the deposits
Close the drains and refill with clean fresh water, preferably demineralised water. Fill slowly and release air through the engine's designated bleed points before starting.
