How do I add engine oil to a marine inboard engine?

To add engine oil to a marine inboard, locate the filler cap on top of the rocker cover, pour in the correct marine-grade oil in small 200ml increments, and wait a few minutes before rechecking the dipstick. Keep the oil level firmly between the minimum and maximum marks, as overfilling can blow crankcase seals or cause a catastrophic engine runaway in diesels.

Accurate Dipstick Readings

Verify you actually need oil before opening the cap. The boat must rest at its normal trim. If you have crew on one side or the bow sits low, the oil in the sump shifts and gives a false reading. Check the level when the engine is cold. Alternatively, wait fifteen minutes after shutting down to allow oil in the upper galleries to drain back into the sump.

Pull the dipstick and wipe it clean with a lint-free rag. Reinsert it fully and pull it out again. The hatched area or the space between the two notches represents the safe operating range. Top up the sump if the oil sits at or just above the lower mark.

Filler Caps and Oil Types

Most marine diesels, such as the Volvo Penta D2-40, Yanmar YM series, or Beta Marine engines, have a primary oil filler cap on top of the rocker cover. This cap is usually black or yellow and often features an oil can symbol. Some engines, like the Yanmar 3YM30, have a secondary filler cap on the front timing gear case. Both caps route to the same sump.

Always use the exact oil specification for your engine. Most modern marine diesels require a 15W-40 heavy-duty diesel oil meeting API CI-4 or Volvo VDS-3 standards. A 5-litre jug of quality marine oil like Shell Rimula R4 or Volvo Penta genuine oil costs between £35 and £45. Older naturally aspirated engines, such as the BMC 1.5 or Ford Lehman, often need a mineral SAE 30 or 15W-40. Never pour synthetic petrol engine oil into a marine diesel. The additive packages differ completely and cannot handle heavy soot loads.

Topping Up the Sump

Adding oil requires patience. The volume difference between the MIN and MAX marks on a 40hp marine diesel is usually only 1.5 litres.

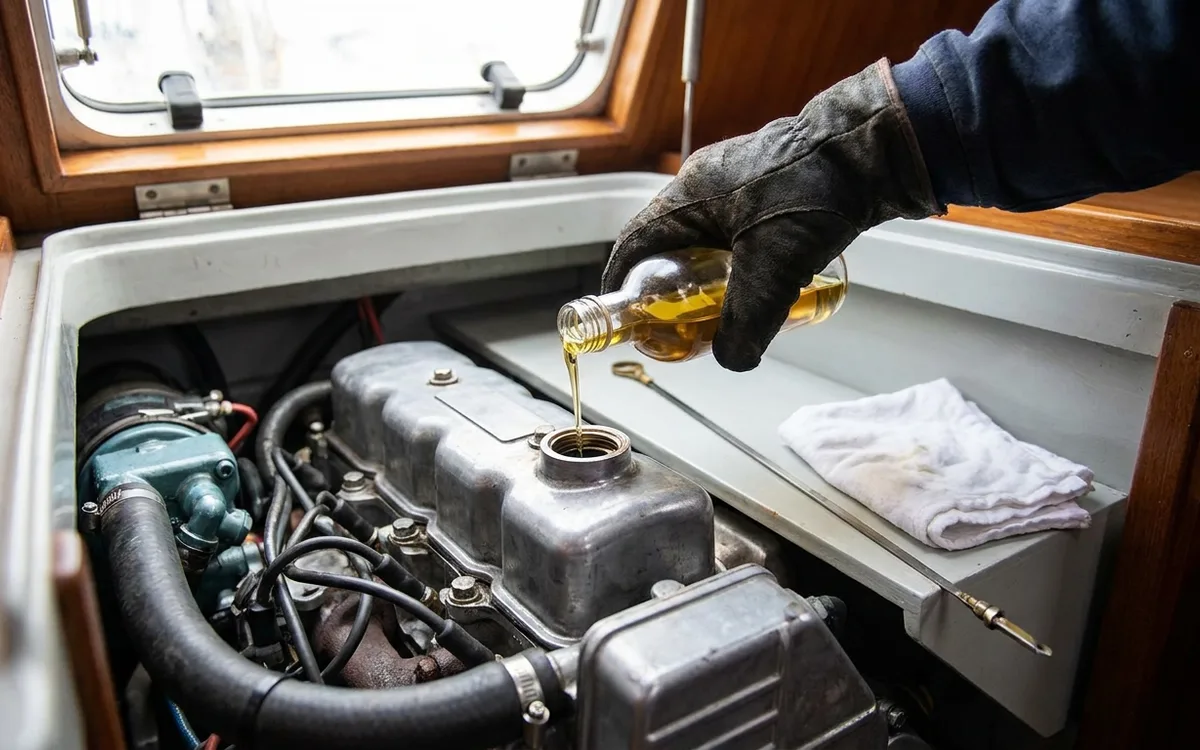

• Wipe the area around the filler cap before opening it to stop dirt or paint flakes falling into the valvetrain.
• Place a clean oil funnel into the filler hole.
• Pour in roughly 200ml of oil.
• Wait three to five minutes. Cold marine engine oil is thick and takes time to travel down the pushrod tubes into the sump.
• Check the dipstick again. Repeat the process until the level sits in the upper half of the safe zone.
