How Do Boat Propellers Work?
I'm thinking about upgrading the prop on my 32-foot cruiser, but I realised I don't actually understand the mechanics of how they generate thrust. Can you explain how boat propellers actually work and what terms like pitch and slip really mean in practice?
Answer

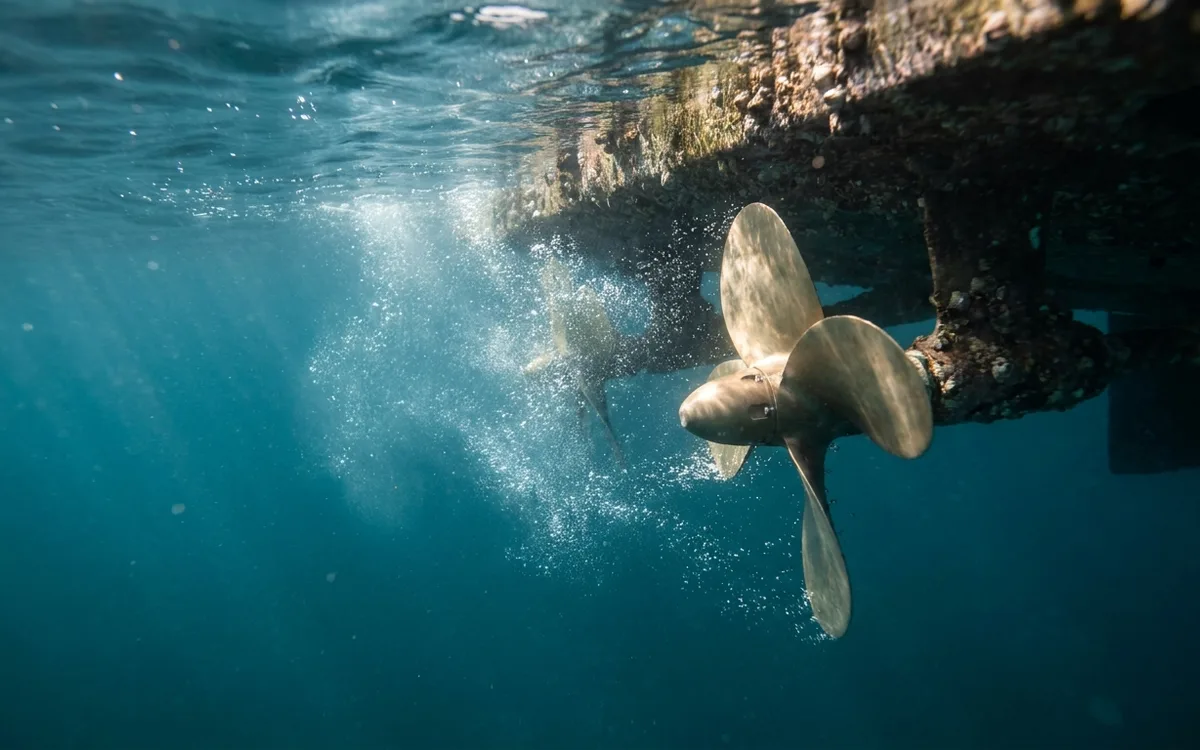

A boat propeller works by drawing water in from the front and accelerating it out the back, creating forward thrust through a pressure difference across the blades. As the blades rotate, their angled shape acts like a screw threading through solid water, though in a liquid environment a calculated amount of slippage always occurs.
Suction and Pressure Faces
When a propeller spins, water flows over the curved blades. The forward-facing side of the blade (the suction face) creates a low-pressure area, while the aft-facing side (the pressure face) creates a high-pressure area. This pressure differential pulls the boat forward while pushing a column of water astern. This mirrors the aerodynamic principle lifting an aeroplane wing, applied to a denser fluid. A Volvo Penta D1-30 turning a saildrive at 3,000 RPM relies on a gearbox reduction ratio (typically 2.19:1) to spin the prop at the optimum speed. This maintains the pressure difference without churning the water into foam.
Diameter and Pitch
Every propeller is defined by two numbers stamped on the hub. Look at the hub of a typical Yamaha 115hp outboard and you might see '13 x 19' stamped into the metal.
- Diameter (13 inches): The total width of the circle swept by the blade tips. Heavier displacement boats need larger diameters to push a massive volume of water. Fast planing hulls use smaller diameters to reduce drag and increase RPM.
- Pitch (19 inches): The theoretical forward distance the propeller would travel in one full revolution if moving through a solid material like wood. A 19-inch pitch prop tries to move 19 inches forward per turn. Lower pitch provides better acceleration and towing power. Higher pitch yields a higher top speed at lower cruising revs.
Understanding Propeller Slip
Because water is a liquid, a propeller never achieves its theoretical pitch distance. The difference between the theoretical distance and the actual distance travelled is called slip. A standard heavy displacement sailing yacht might experience 30 to 45 per cent slip. A fast planing speedboat fitted with a stainless steel Mercury Enertia prop might see only 10 to 15 per cent. Slip is not a mechanical fault. Without it, the propeller blades would lack the necessary angle of attack to generate the pressure difference creating thrust.
