Can a fuel pressure regulator fail without leaking on a MerCruiser 8.2?

Yes, a fuel pressure regulator on a MerCruiser 8.2 can fail internally without leaking a drop of fuel. The internal spring can weaken or the bypass valve can stick, causing the fuel pressure to run completely out of spec while the external housing and vacuum reference line remain bone dry.

Mechanics of Internal Failure

The fuel pressure regulator on a MerCruiser 8.2 MAG or HO uses a mechanical spring and a diaphragm to maintain constant fuel pressure across the injectors. The fuel pump delivers maximum pressure. The regulator bleeds the excess back to the fuel tank or the water cooled fuel module. A weakened spring bleeds off too much fuel and creates a lean condition. A stuck pintle valve or a clogged return filter screen traps the excess fuel and creates a dangerously rich condition. Neither scenario produces external leaks or raw petrol in the vacuum hose.

Symptoms of Internal Failure

The regulator controls the exact volume of fuel sprayed by the injectors. An internal failure throws the air and fuel mixture out of balance. You will see distinct symptoms depending on whether the valve fails open or closed.

• Stuck Closed (High Pressure): The engine runs rich. You will notice soot buildup on the transom, fouled spark plugs, a strong smell of unburnt petrol at idle and a rough idle.
• Stuck Open (Low Pressure): The engine runs lean. It starts fine but bogs down when you push the throttle to get the boat on the plane. Severe cases cause backfiring through the intake manifold and high running temperatures.
• Vapour Lock: A regulator failing to hold residual pressure after engine shutdown allows fuel in the rail to boil. This makes the engine difficult to restart after sitting for twenty minutes.

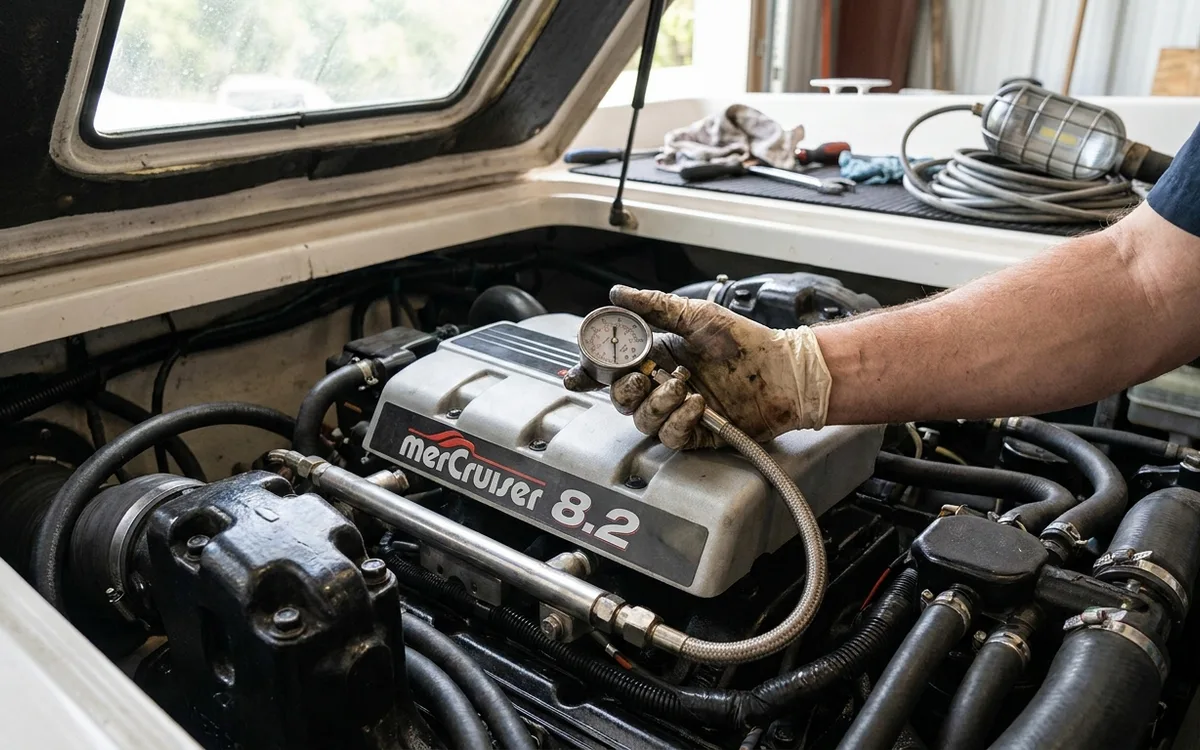

Testing the Fuel Pressure

Petrol sits under high pressure. Always wrap a rag around the fitting when connecting your test equipment. Diagnosing a dry failure requires a mechanical marine fuel pressure gauge with a Schrader valve adapter.

Locate the Schrader valve on the engine fuel rail. Attach your gauge and turn the ignition key to the 'ON' position without starting the engine. The fuel pump runs for two to three seconds to prime the system. A standard MerCruiser 8.2 MPI should show roughly 43 psi. Later models with emissions control (catalyst) typically run between 43 and 45 psi. Verify the exact specification for your serial number.
