Boat engine won't crank when turning the key?

When you turn the key and get nothing, not even a single click, the issue is a complete break in the 12V supply between the battery, the ignition switch and the starter motor. Start by verifying battery voltage and the main isolator switches before tearing into the wiring loom or the starter solenoid.

Batteries and Main Connections

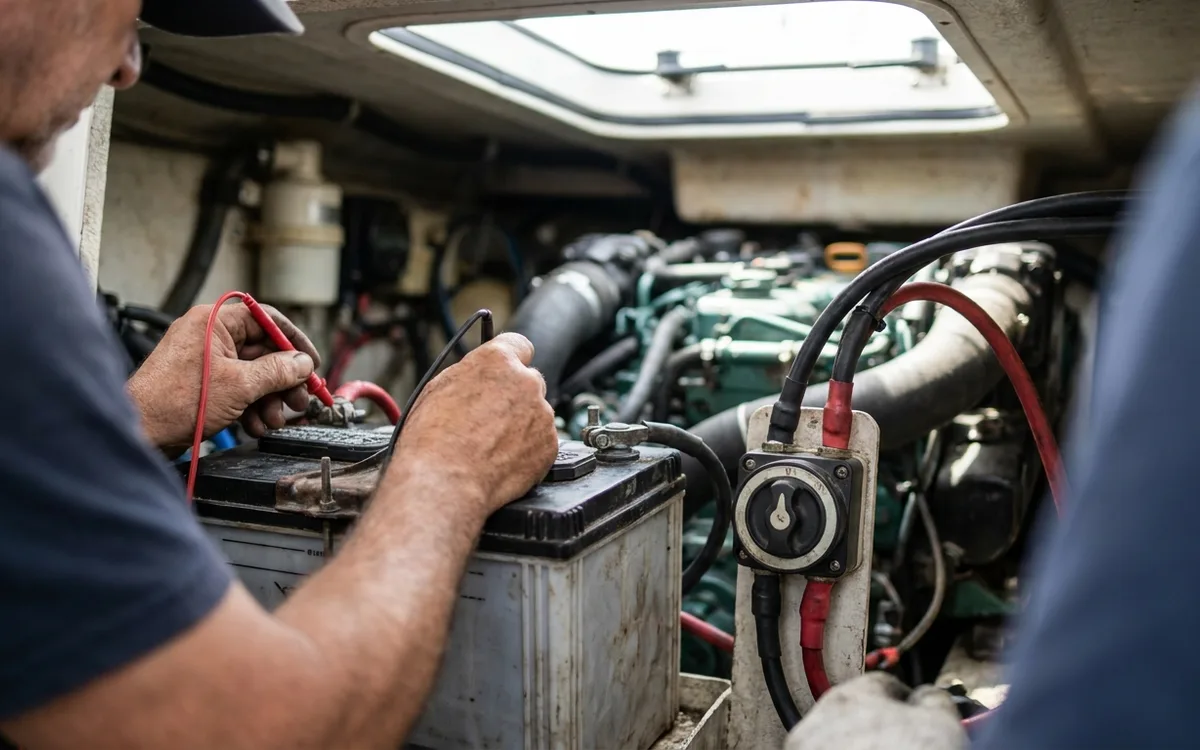

Grab your multimeter and test the engine start battery directly at the terminals. You want to see at least 12.4V. Anything below 12.0V means a flat battery requiring a charge or replacement. Check the battery clamps next. A loose or heavily oxidised terminal carries enough current to light up your instrument panel but fails instantly under the 150 to 300 amp draw of a starter motor. Tighten the terminals with a 10mm or 13mm spanner. Ensure the main battery isolator switch is fully engaged. Turn the switch off and on firmly a few times to clear light internal corrosion on the copper contacts.

Check the main earth cable where it bolts to the engine block. This is often an M8 or M10 bolt near the bell housing or starter motor. Engine vibration loosens this connection easily. A poor earth completely kills the starting circuit. Remove the bolt, clean the ring terminal with a wire brush and re-torque it firmly.

Neutral Safety Switch and Ignition

If the main power is fine, the signal from the key is failing to reach the starter. The most common culprit is the neutral safety switch. This microswitch sits inside the throttle binnacle and prevents the engine from starting in gear. Jiggle the throttle lever firmly in the neutral position while turning the key. If the engine cranks, the microswitch (typically a £30 to £50 part from Teleflex or Morse) is either loose or failing.

Pull the engine control panel forward and inspect the back of the ignition switch. Look for a loose spade connector or heavy green verdigris on the terminals. The start terminal should send 12V down the wiring loom to the engine when you turn the key to the crank position.

Starter Solenoid and Relays

Follow the wiring harness down to the engine block. Most marine diesels, like a Yanmar 3YM30 or Volvo Penta D2 40, have a starter solenoid piggybacked onto the starter motor and an intermediate starter relay mounted nearby.

• Listen for a click: Have a crew member turn the key while you stand by the engine. A sharp click from the starter relay without the engine cranking means the relay works but the main starter solenoid is stuck or starved of power.
• Voltage drop: Older Yanmar engines suffer from voltage drop in the wiring loom. The 12V signal travelling from the binnacle to the engine often drops to 9V. This fails to throw the solenoid. Fitting an aftermarket starter relay close to the starter motor solves this permanently.
• Bridge the solenoid: Test the starter directly by bridging the large 12V positive terminal on the solenoid to the small start terminal using an old screwdriver. Ensure the engine is in neutral and keep clear of belts. The connection will spark and the engine will crank immediately.
