Why is my boat's electrical system using so much power?
My 12V domestic batteries seem to run down much faster than they used to, especially overnight at anchor. We leave the fridge on and sometimes use the diesel heater and inverter, but how do I tell whether something is drawing too much or the batteries are failing?
Answer
Your boat's batteries usually run down quickly because appliances run longer than expected, an inverter or hidden load stays on, or the batteries no longer hold a full charge. Measure battery current first, then isolate individual circuits to separate excessive consumption from poor charging or lost battery capacity.
Measure the battery drain
A battery monitor with a shunt in the domestic battery negative connection shows current flowing in or out and records amp-hours used. Its percentage display is useful only when the battery capacity, settings and full-charge synchronisation are correct.
To check consumption, temporarily stop shore-power, solar and engine charging using the equipment's proper controls. Incoming charge can mask the load.
- Record the current with your usual equipment running.
- Switch off appliances and their circuits one at a time, noting each reduction.
- Switch off the inverter at its main control and check again.
- With ordinary circuits off, check any remaining draw against the wiring diagram, including equipment with a permanent supply.

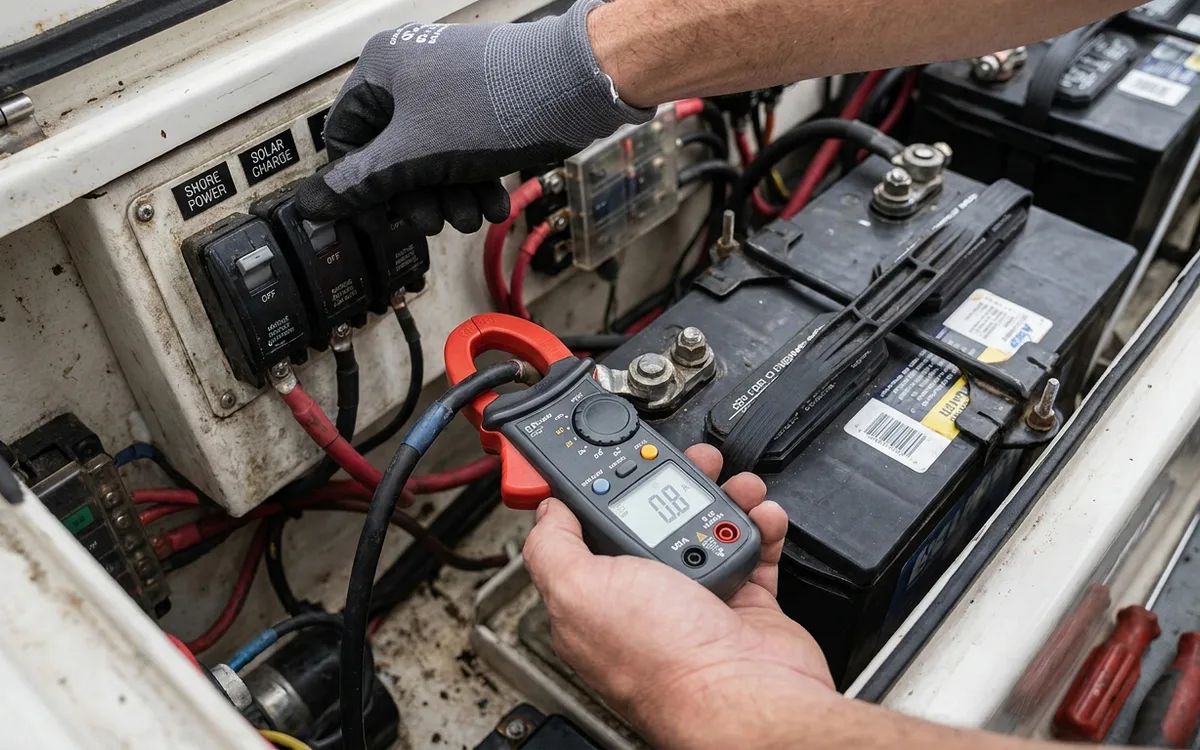

A DC clamp meter around one battery cable provides another check. It must measure DC amps, though small standby currents may be below its useful resolution. Never connect a multimeter set to amps directly across the battery terminals.
Check long-running appliances
Daily consumption is current multiplied by operating time. A 2A load running continuously uses 48Ah in 24 hours. A 100A load running for three minutes uses only 5Ah. That is why a small forgotten lamp can use more than a briefly operated motor.
- Fridge: measure compressor current and running time. A 4A compressor running for a total of 12 hours uses 48Ah daily. Poor condenser ventilation, damaged lid seals, warm provisions and an unnecessarily cold thermostat setting increase running time. Normally, leave the fridge switched on and let its thermostat control it.
- Diesel heater: even when burning diesel, the heater needs electricity for its fan, pump and controls. Overnight operation adds up. Allow the normal shutdown and cooling cycle to finish before isolating power.
- Autopilot: consumption varies with sea conditions, sail balance and steering load. Reduce weather helm and check for stiff steering before blaming the pilot.
- Pumps and lights: a freshwater pump cycling with the taps shut suggests a leak or pressure loss. Investigate frequent bilge-pump operation, and check for forgotten locker and engine-space lamps.
Use measured averages for your boat. Appliance ratings alone do not tell you how many hours each item runs.
