Why does my chartplotter keep turning off, and how can I diagnose the cause?
My chartplotter sometimes switches off when I start the engine, but it has also restarted while motoring through choppy water. It comes back on normally afterwards. How can I tell whether the problem is the battery, wiring or the plotter itself?
Answer
Your chartplotter is most likely losing power briefly because of low voltage, a loose connection or corrosion in the wiring. Check the power connector and measure voltage at the display while it is running before investigating software or an internal fault.
Identify how it stops
A black screen, a frozen chart and an automatic restart point to different faults. Note whether the manufacturer's start-up logo reappears, whether other instruments lose power and which equipment was running at the time.
- During engine starting: suspect a voltage dip, a weak battery or resistance in shared supply cables and connections.
- When hitting waves: suspect a loose plug, fuse holder, terminal or damaged cable.
- When a windlass, thruster or pump runs: check for voltage drop through a shared supply or negative return.
- After a similar running time: check the supply first, then investigate temperature, software and connected equipment.
If the screen goes dark without an obvious restart, check brightness and standby settings. On applicable Furuno touch-control models, use a bare finger on the power control; gloves can prevent it responding.
Inspect the power circuit
Isolate the circuit before unplugging connectors or repairing wiring. Never bypass its fuse. Start at the display, where the connector is exposed to movement and, at helm installations, moisture.
- Check that the power plug is correctly orientated, fully inserted and locked. Look for bent or recessed pins, green deposits, damaged seals and cable strain.
- Restore power and gently flex the insulated cable near the connector. A restart points to a damaged lead or connector. Avoid pulling on the socket.
- Inspect the fuse and holder, breaker terminals, distribution-panel connections and any inline joints. A fuse can look intact while its holder has poor contact.
- Follow both positive and negative cables back to their busbars and battery connections. A poor negative connection causes the same symptoms as a poor positive one.
Replace damaged terminals or corroded cable rather than just spraying them. Tighten connections to the component manufacturer's specification; overtightening easily damages small studs and connector fittings. Use the fuse rating specified for the exact plotter model. If a replacement blows again, investigate damaged wiring, connector pins or incorrect connections rather than fitting a larger fuse.
Measure voltage at the plotter

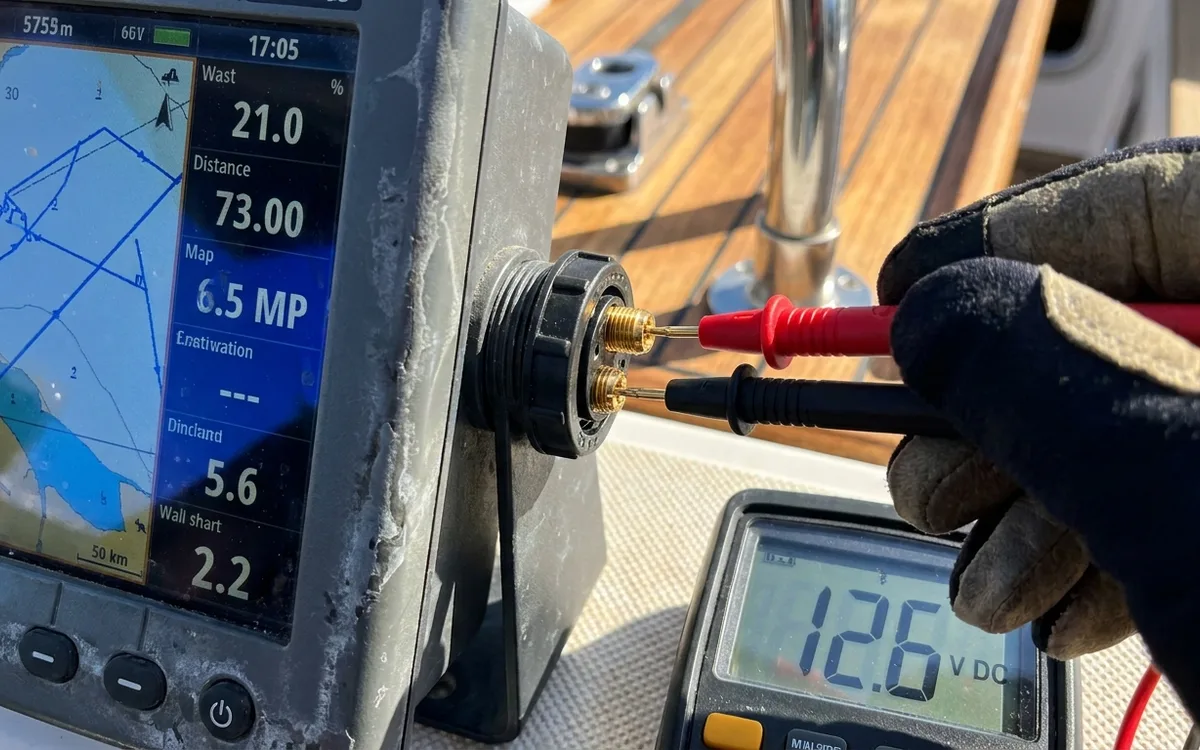

A satisfactory battery reading does not prove that enough voltage reaches the display. Use a digital multimeter across the plotter's positive and negative supply, as close to its power connector as safely accessible, with the display connected and running. Avoid spreading connector contacts with oversized probes.
