Why does my boat's anchor light keep flashing, and how can I troubleshoot it?
My masthead LED anchor light keeps flashing instead of staying on steadily. Sometimes it works normally for a while, then starts blinking again. How can I check whether the fault is in the light, the wiring or the switch before going up the mast?
Answer
Your anchor light is most likely flashing because an intermittent connection or low voltage keeps restarting its LED electronics; a failing LED driver or automatic daylight sensor can cause the same symptoms. Check the battery supply, panel switch and accessible mast connections first, then test the fitting once you have confirmed a sound supply.
Identify the light and pattern
Check whether the white light itself is flashing or just an indicator on the switch panel. An ordinary anchor light should show a steady, all-round white light; a flashing panel indicator may be reporting a lamp fault.
Watch the light for several minutes and note what triggers it:
- Irregular flickering, especially as the boat moves: suspect a loose terminal, corroded connector, worn bulb contact or damaged cable.
- Regular on-off cycling: suspect repeated low-voltage shutdown, failing LED electronics or a controller setting.
- Flashing only around dusk: investigate a daylight sensor and reflected light.
- Flashing when another appliance starts: check battery condition and shared supply or negative connections.
Identify the fitting and any replacement bulb. Some combination masthead lights select operating modes through switch sequences or separate wires. Check the manufacturer's instructions before treating regular flashing as a fault.
Test the supply under load

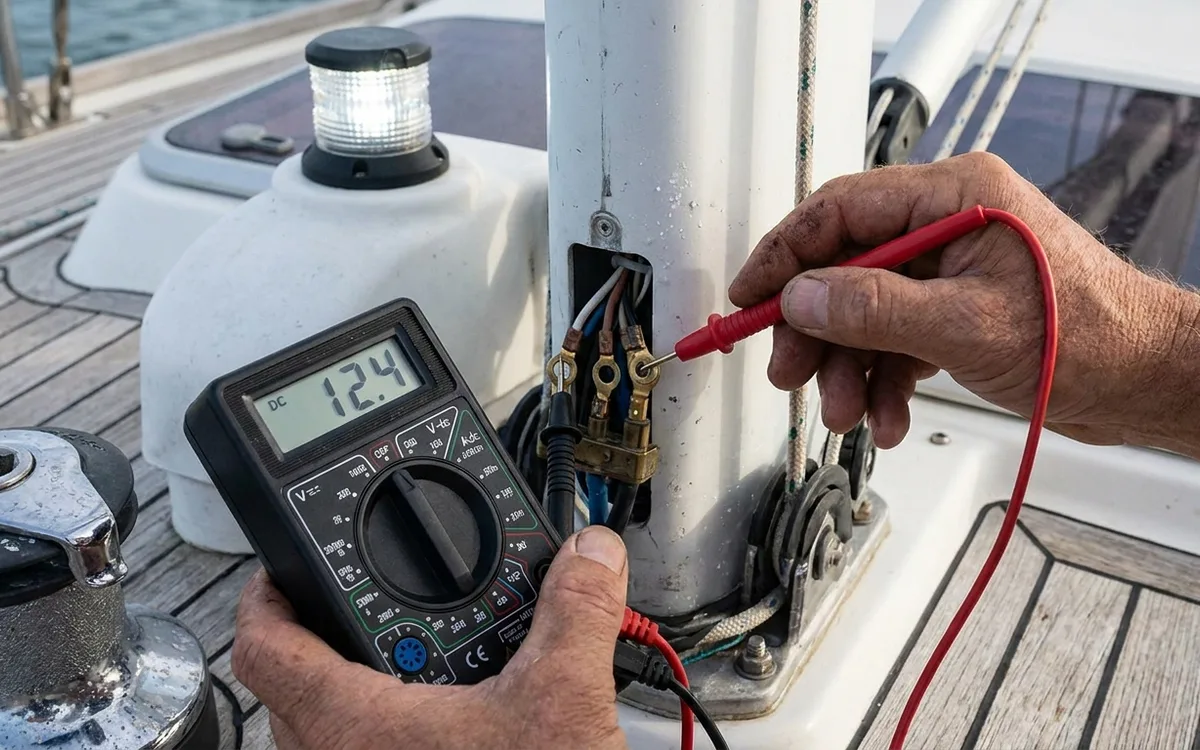

Set a digital multimeter to DC volts. With the light switched on, measure directly across the battery terminals, then between the anchor-light positive and its own negative at an accessible connector. An unloaded voltage reading can look normal even through a badly corroded connection.
On a conventional 12 V lead-acid installation, a fully charged battery at rest typically reads around 12.6 to 12.8 V. Charging voltage will be higher. Lithium batteries and 24 V systems need their own reference values. Compare the voltage reaching the lamp with the battery voltage at the same time.
- Check the panel supply and anchor-light switch output.
- Check both sides of any fuse holder or connector.
- Check the accessible mast-base or deck connection.
- If you can reach it safely, measure across the fitting's supply terminals while it flashes.
A loss approaching 0.5 V on a lightly loaded 12 V LED circuit deserves investigation, although the fitting's specified operating range determines whether it will shut down. Check the negative return as carefully as the positive feed. A multimeter may miss brief interruptions, so use its minimum-recording function if available.
Inspect connections, protection and bulb
Isolate the circuit before opening connections. If work aloft is necessary, use proper mast-access equipment with an independent safety line.
