Why does my boat battery drain so quickly, and how can I find the draw?
My boat has a 12V 110Ah domestic battery that struggles to last overnight, even with most switches off. The fridge runs intermittently and the automatic bilge pump stays connected. How can I measure what is draining it and tell whether the battery itself is worn out?
Answer
Your battery drains quickly because equipment uses more power than you expect, charging is incomplete, or the battery has lost capacity. Check that it is fully charged, then measure the current leaving it and isolate circuits until you find the load.
Check battery and charging
A tired battery can show a healthy voltage after charging but deliver very few amp-hours. Rapid discharge, difficulty reaching full charge and an acid smell can also point to a failed cell. A defective battery can damage others connected in parallel.
Ventilate the battery compartment and keep flames and sparks away. Stop testing if the battery is hot or swollen, or smells strongly of acid.
For a conventional 12V lead-acid battery, charge it fully using the correct charger setting. Stop charging and leave it without loads for several hours, ideally overnight. Around 12.7 to 12.8V usually indicates full charge; roughly 12.2V indicates about half charge. Temperature and battery type affect the reading. These figures do not apply to lithium batteries, whose voltage changes little through much of their discharge.
Measure voltage directly at the battery posts and compare it with the panel display. Check terminals, negative connections and charging cables for looseness or corrosion. A large difference between readings suggests a connection or cable problem. If a charged battery loses substantial charge while completely disconnected, have its capacity tested.
Calculate expected consumption
Multiply amps by hours to calculate amp-hours: a continuous 1A draw consumes 24Ah per day. A 110Ah lead-acid battery has roughly 55Ah available if you avoid routinely discharging below half charge. An ageing battery may provide considerably less.
- Fridge: a compressor drawing 4A and running for 12 hours in total uses 48Ah daily. Warm weather, poor condenser ventilation and a high thermostat setting increase consumption.
- Heater: the fan and controls draw power throughout operation, with extra demand during starting.
- Autopilot: consumption rises with sea conditions, steering load and poor sail balance.
- Hidden loads: locker lamps, stereo memory, USB sockets, inverters left in standby, trackers and network equipment can remain powered unnoticed.
Normally, leave the fridge under thermostat control. Improve its ventilation and adjust its setting before assuming it has a fault. Even a small lamp left on continuously can flatten a battery between visits.
Measure the draw safely

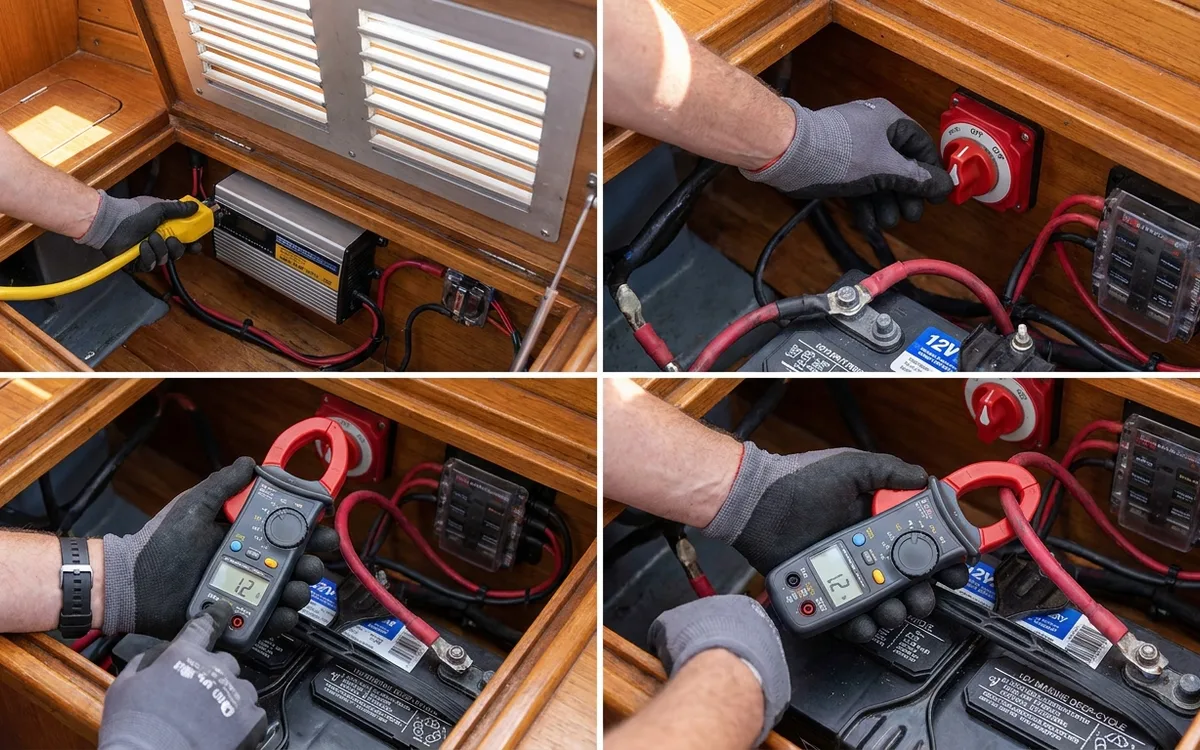

A DC clamp meter with useful resolution below 0.1A is the simplest starting point. An AC-only clamp meter cannot measure battery current. Zero the meter away from the cable, then clamp it around one battery conductor only. Clamping around positive and negative together cancels the reading.
