How do I test a boat bilge pump with a multimeter?
My 12V electric bilge pump has stopped coming on automatically, and it sometimes does nothing on the manual switch either. I've got a digital multimeter, but where should I put the probes and what readings should I expect?
Answer
Set your multimeter to DC volts and measure across the bilge pump's positive and negative connections with the pump switched on. Compare this with the voltage across the battery, then test the supply wiring, negative return and float switch to find any voltage loss.
Prepare the pump and meter
Clear the intake strainer and check for debris around the impeller. A jammed pump can look like an electrical failure. Inspect the discharge hose for kinks or blockages, and check that the battery, panel switch and bilge-pump breaker are set as required by your boat's wiring.
Some automatic circuits connect directly to a separately fused battery supply and stay live with the main battery switch off. Others need that switch on. A shower sump may have its own pump and controls, so identify the correct circuit.
Keep connections clear of bilge water, ventilate any space where fuel vapour could collect, and isolate every pump feed before opening wiring or using resistance mode.
- Put the black lead in COM and the red lead in V/Ω.
- Select DC volts, usually marked V with a solid and dashed line. Use the 20V range for a 12V system or a higher range for 24V.
- Keep the red lead out of the amps socket. Placing an ammeter across the supply creates a short circuit.
Use accessible terminals or suitable back-probes without damaging insulation. Keep running tests brief, with clean water around the intake, and avoid prolonged dry running.
Measure voltage under load
Measure directly across the battery posts first. A rested, charged 12V lead-acid battery typically reads about 12.6 to 12.8V; charging voltage is commonly around 13.8 to 14.7V. Lithium batteries have different resting voltages, so use the actual battery reading as your reference.
- Switch the pump on using the manual switch.

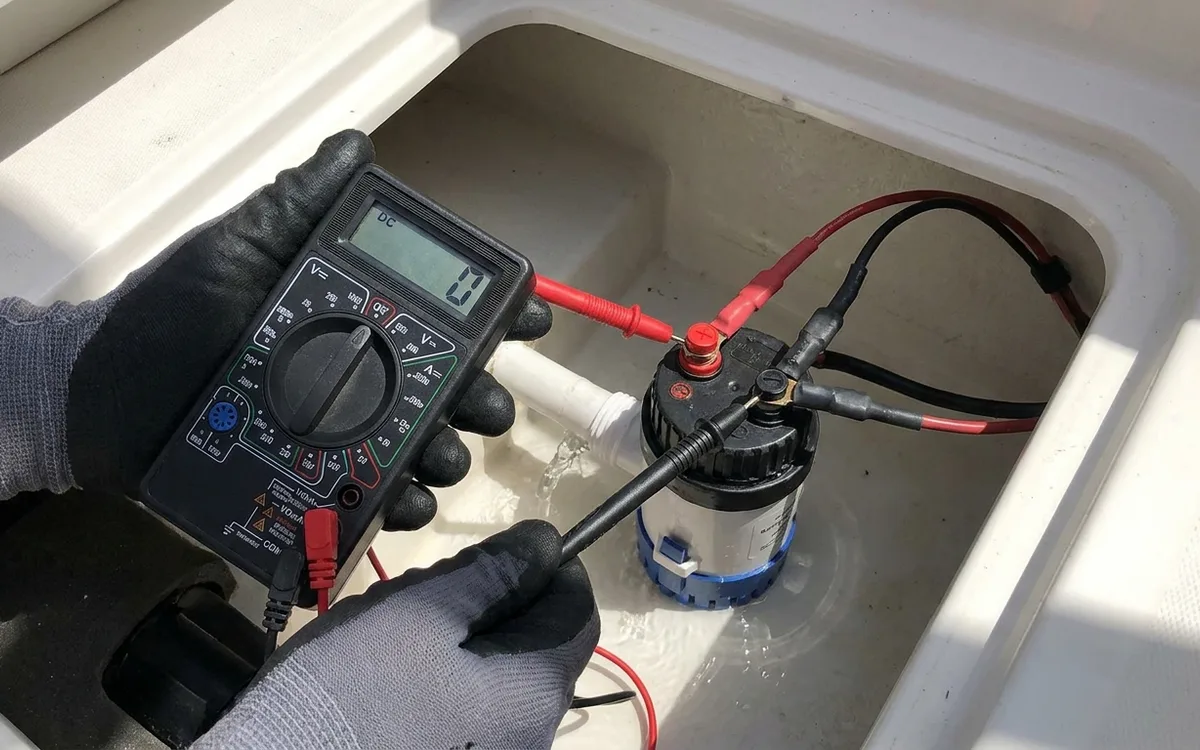

- Place the red probe on the pump's positive terminal and the black probe on its negative terminal, leaving the pump connected.
- Compare this reading with the battery voltage while the pump remains switched on.
Nearly battery voltage but no operation suggests a seized impeller, failed motor or fault inside an integrated electronic pump. Listen for humming, then isolate the power before inspecting the impeller.
Low or zero voltage suggests a fault in the supply, switch or negative return. A reading with the pump disconnected can mislead: a corroded connection may pass enough current for the meter to display 12V, yet the voltage can collapse under motor load.
