How do I reset a Mercury SC5000 display after extensive battery drain?
My Mercury SC5000 display has stopped working properly after the batteries went heavily flat. How do I restart it, and will I need to reset the engine or fuel-tank settings?
Answer
Fully recharge and test the battery, then restart the Mercury SC5000 by switching off its power supply and powering it up again. Try this power cycle first: a factory reset cannot fix low voltage or a poor connection and may mean repeating the display setup.
Check the battery and display
Mercury's older SC5000 is usually labelled System View; VesselView is a later display family. Check the unit's label or handbook before attempting a reset. Instructions for newer VesselView screens may not apply.
After a deep discharge, check the power supply first. A battery may accept a charge but have too little capacity left to power the electronics while the starter turns.
- Fully charge the battery using the correct programme for its chemistry.
- For a conventional 12 V lead-acid battery, expect roughly 12.6 to 12.8 V at rest when fully charged. Measure after charging has stopped and the surface charge has dissipated. Lithium battery readings need a different interpretation.
- Watch the voltage while cranking. A drop towards or below about 10 V, particularly if the screen restarts at the same time, calls for a battery load test and cable checks. This is a diagnostic guide, not an SC5000 specification.
- Check battery terminals, the negative return and battery isolator connections for looseness, corrosion or heat damage.

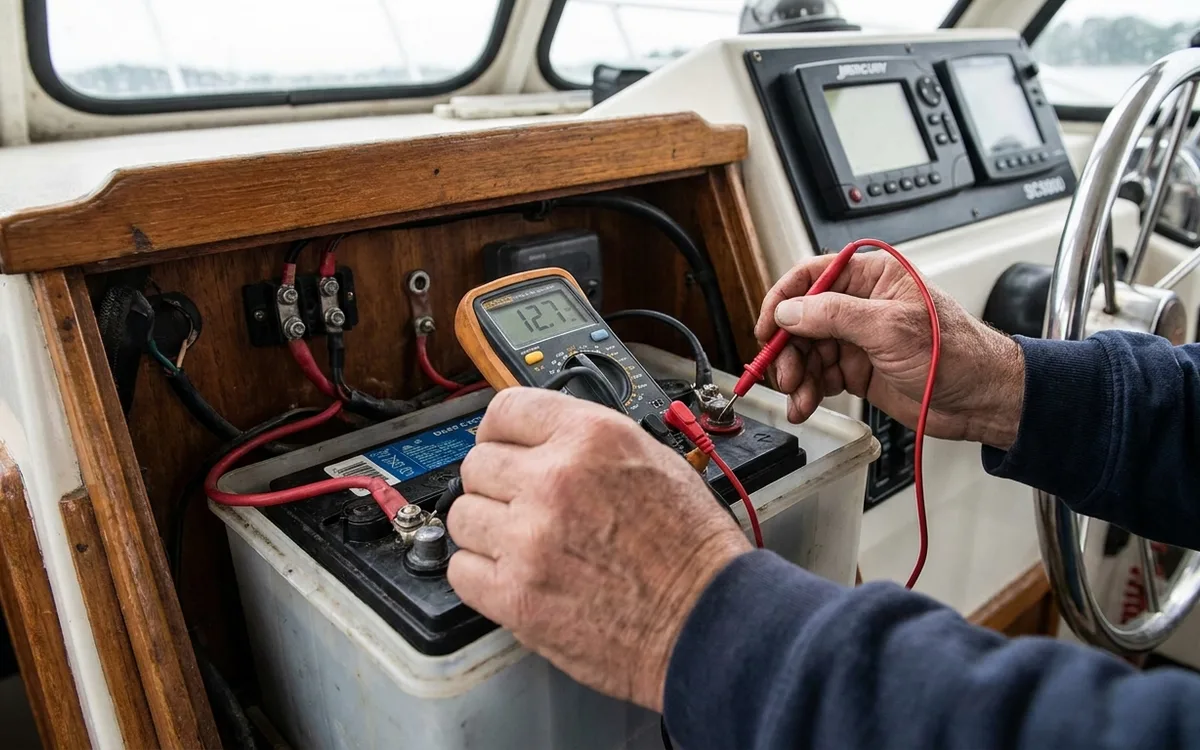

Use a multimeter at the battery posts first, then at the display supply if accessible. A healthy reading at the battery does not rule out voltage loss through a bad connection.
Complete a power cycle
Turning the ignition key off and on may leave some installations powered. Remove power from the display and its relevant SmartCraft supply, then restore it.
Stop the engines, switch off charging sources and isolate the relevant electrical supply before disconnecting plugs or removing fuses.
- Turn every engine ignition key off and switch off the display, if it responds.
- Switch off the battery isolator supplying the engine instruments. On twin-engine boats, check whether either engine circuit or a separate instrument feed keeps the system powered.
- If necessary, use the boat's wiring diagram to identify and remove the display or instrument supply fuse. Do not pull unidentified engine fuses.
- Leave the display completely unpowered for about two minutes. This is a practical restart interval, not a special Mercury reset command.
- Refit the fuse and switch the isolators back on, then turn on the ignition without starting the engines. Let the display finish booting before using its controls.
