How can I tell whether my boat battery needs replacing or just needs charging?
My boat's 12V battery starts the engine slowly, and the chartplotter sometimes restarts when I turn the key. How do I check whether it just needs a proper charge or has reached the end of its life?
Answer
Fully charge the battery with the correct charger, let it rest, then check its voltage and performance under load. A discharged battery may recover completely; one that cannot hold its charge or provide enough starting power or domestic capacity after charging usually needs replacing.
Check casing and connections
Read the label first. Flooded lead-acid, AGM, gel and lithium iron phosphate (LiFePO4) batteries need different charging settings, and their readings need different interpretation. The figures below apply to a single 12V lead-acid battery at roughly 20 to 25°C; double the voltages for a 24V bank.

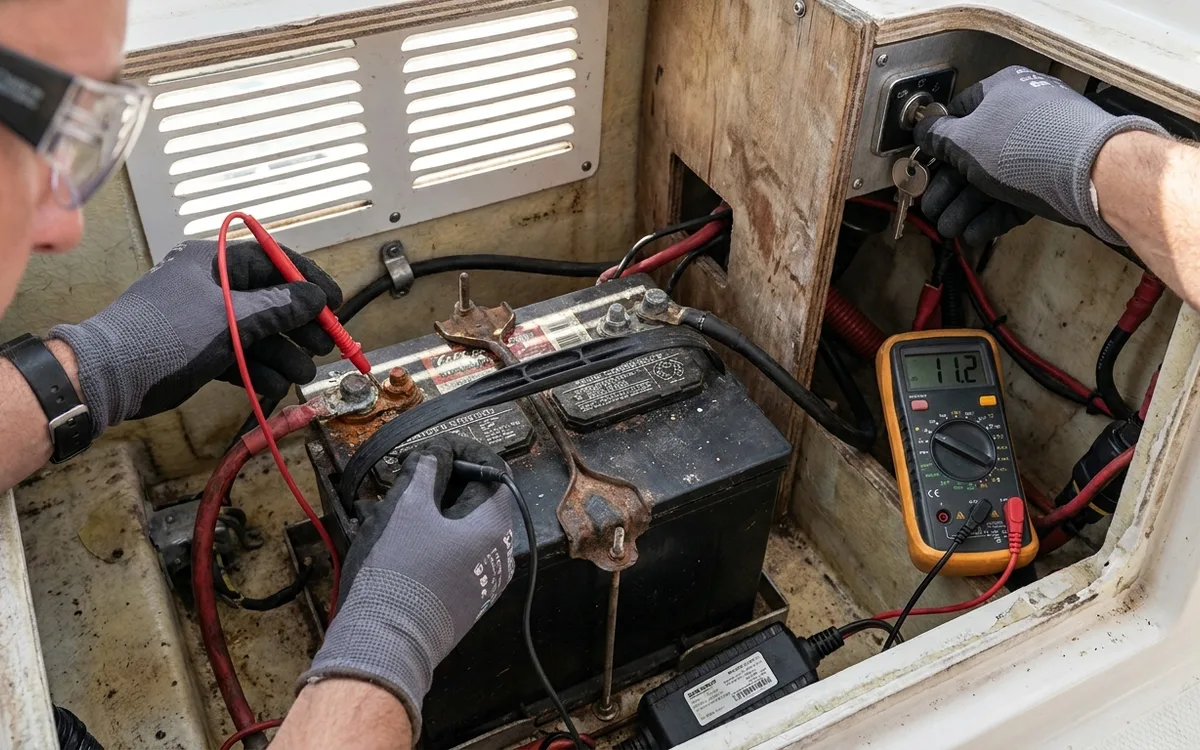

Inspect the casing, battery posts, cable terminals, engine earth connection and battery isolator. Loose or corroded connections can cause slow cranking even with a healthy battery. Measure directly on the lead posts first: a dashboard display may show voltage lost through the wiring.
Ventilate the compartment, wear eye protection, remove jewellery and keep sparks and flames away. Isolate charging sources before disconnecting cables. On a conventional negative-earth installation, remove the negative cable first.
Replace a battery if its casing is cracked, it leaks or it has visibly swollen, and investigate the charging system. On serviceable flooded batteries, check that electrolyte covers the plates and follow the maker's instructions for topping up with distilled water. Never open sealed AGM or gel batteries.
Charge and check resting voltage
Set the charger for the battery chemistry and let it finish its charging cycle. A deeply discharged domestic bank may need overnight or longer. Half an hour of engine running rarely restores it fully.
During charging, many conventional lead-acid batteries reach around 14.4V in absorption, then settle to approximately 13.5 to 13.8V on float. These are charging voltages, not resting readings. The correct settings vary with battery type and temperature.
Disconnect charging sources and loads, including solar charging, and leave the battery for at least four hours, preferably overnight. Typical rested flooded lead-acid readings are:
- 12.6 to 12.8V: approximately fully charged.
- About 12.4V: partly discharged, roughly 75% charged.
- About 12.2V: roughly half charged.
- 12.0V or below: heavily discharged; recharge promptly.
AGM batteries can rest slightly higher; use the manufacturer's chart. Around 10.5V after a proper charging attempt strongly suggests a failed cell. A normal 12.7V reading indicates charge level, but does not establish remaining capacity.
