Why is my Hallberg-Rassy completely dead with no 12V power?
I came down to my 1998 Hallberg-Rassy 36 this weekend and nothing is working. The Volvo Penta engine won't crank, and the 12V domestic panel is completely dead, even though I left the shore power plugged in.
Answer
A complete loss of 12V power on a Hallberg-Rassy points to a tripped main breaker, a failed battery isolator switch, or a blown ANL fuse near the battery bank. Check the physical battery switches and the main DC breaker on your distribution panel before tearing into the wiring.
Battery Switches and Main Fuses
Hallberg-Rassy yachts built in the 1990s and 2000s, such as the HR36, HR34 or HR42, use heavy-duty rotary switches made by Hella or Blue Sea Systems. These switches suffer from internal oxidation when the boat sits over winter. Turn the domestic and engine switches off and on aggressively half a dozen times. This wiping action breaks through the carbon build-up and restores contact.

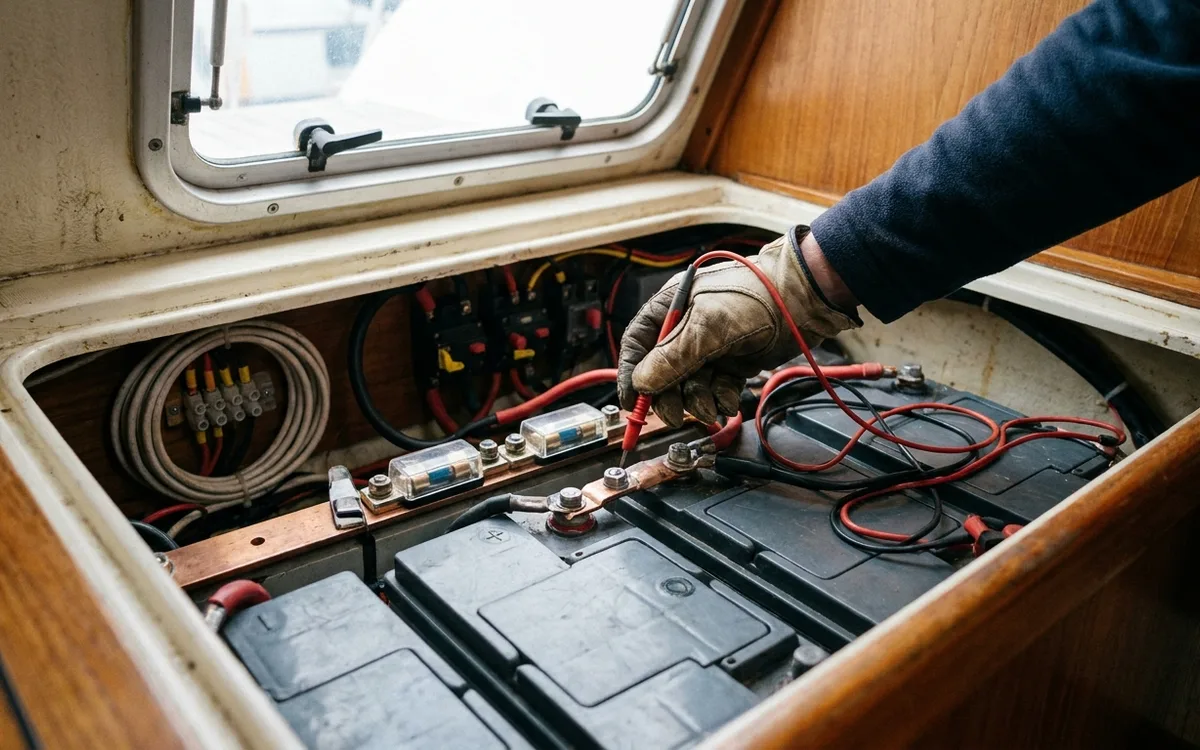

If the switches feel solid, move to the main fuses. You will find large ANL or Mega fuses (typically 250A to 300A) bolted to the positive battery terminals or on a heavy copper busbar just outside the battery box. Do not trust a visual inspection. Hairline cracks in the fuse element hide under the plastic window. Set your multimeter to DC volts. Place the black probe on the negative battery terminal and touch the red probe to both sides of the fuse. A reading of 12.8V on the battery side but 0V on the cable side means the fuse is blown.
Panels and Digital Switching
The next failure point depends on the age of your boat. Older Hallberg-Rassys feature Philippi or custom analogue panels. Check the main DC circuit breaker on the panel itself. Sometimes the toggle feels engaged but has tripped internally. Flip it fully off and then back on.
Post-2010 models like the HR412 or HR44 use an EmpirBus digital switching system. When an EmpirBus system goes dark, check the main control nodes located behind the saloon seating or near the chart table. Look for the LED status lights on the node boxes. A flashing red LED indicates a tripped digital circuit or a communication error. Reboot the entire system by turning off the main domestic battery switch for sixty seconds before turning it back on.
