What makes X-Yachts' construction and structural frame different?
I'm looking at buying a 2005 X-Yacht (an X-43). Everyone talks about their internal steel frame and how stiff they are, but how exactly does this system work? What should I be checking in the bilge when I view the boat?
Answer
X-Yachts are built around a central structural grid (traditionally hot-dipped galvanised steel and now often carbon fibre) that absorbs massive loads from the keel, mast and rigging. This design isolates the fibreglass hull from stress, allowing for higher rig tension and providing structural integrity during a hard grounding.

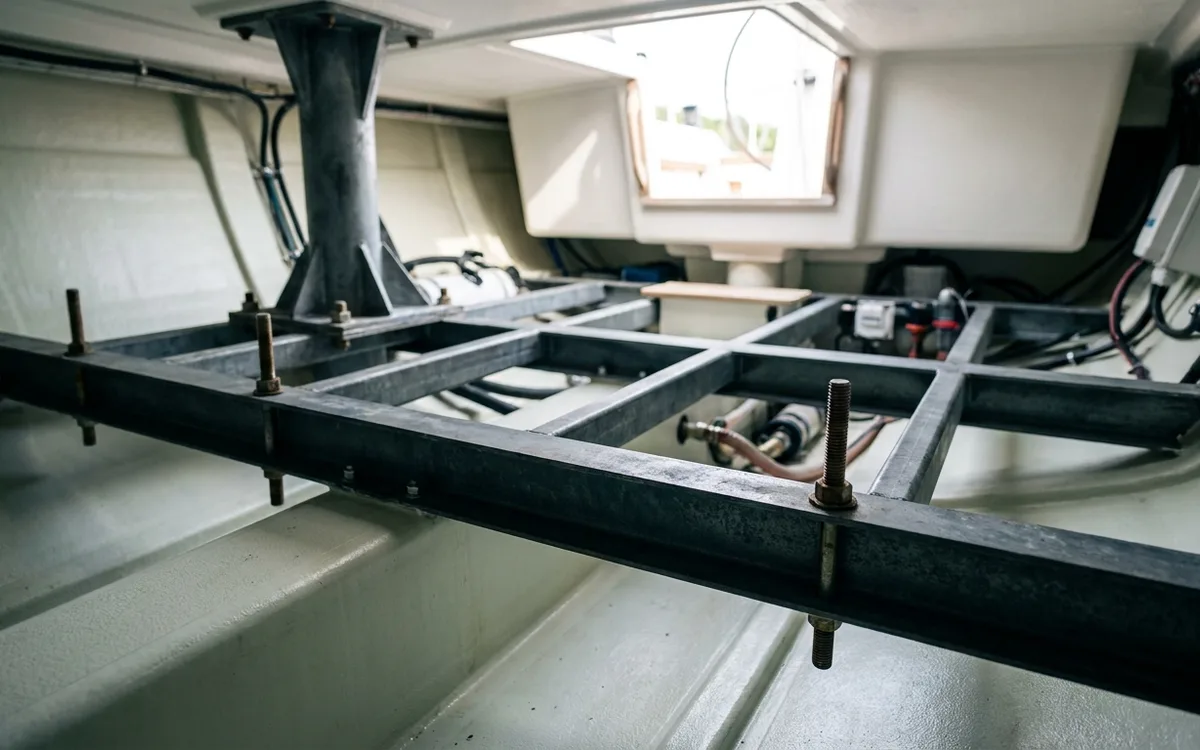

The Signature Steel Frame
Since the early 1980s, X-Yachts has used an internal metal chassis to handle working loads. Instead of relying on the fibreglass hull to support mast compression and the weight of a heavy lead keel, this frame takes the forces directly.
The mast step sits on the grid. Stainless steel keel bolts pass through the hull and directly through the flanges of the steel frame. The shroud chainplates connect to the frame via stainless steel tie-rods. This creates a continuous load-bearing cage where the rigging pulls up, while the mast and keel push down. Because the GRP hull is an outer skin wrapping this skeleton, the boat resists flexing when you wind on the backstay. The forestay remains tight for better upwind pointing.
Steel Versus Carbon Fibre
Older models like the X-332, X-412 or a mid-2000s X-43 feature a hot-dipped galvanised steel frame. These frames are exceptionally strong but add significant weight deep in the boat. This mass is historically acceptable because it contributes to the overall ballast.
Around 2011, X-Yachts introduced carbon fibre grids for their Xp Performance range to save weight. A carbon grid on a 40-foot yacht saves roughly 400 kg compared to its steel equivalent. This allows builders to place more weight in the keel bulb for better stability. The Xc Cruising range largely retained the steel frame for durability. The newer X range blends both materials depending on the specific model and year.
Epoxy Infusion Hull Construction
Beyond the internal frame, X-Yachts hulls feature a sandwich construction with a Divinycell foam core. This provides thermal and acoustic insulation while saving weight.
Starting around 2007, the yard transitioned to vacuum-infused epoxy construction, moving away from hand-laid polyester or vinylester resins. The epoxy hulls are post-cured in an oven at 65°C for 24 hours. This process ensures the resin matrix is fully cross-linked. The resulting hull is up to 30% lighter and significantly stiffer, whilst eliminating the risk of osmotic blistering.
