How can I remove the cabinet ahead of the engine compartment on a Hallberg-Rassy 36?
I want to remove the cabinet immediately ahead of the engine compartment on my Hallberg-Rassy 36 to make servicing easier. Has anyone taken this unit out, and where should I look for hidden fixings before disturbing the woodwork?
Answer
You can remove the cabinet ahead of the engine compartment if it is separately fitted furniture, but first check whether it forms part of a bulkhead or supports the companionway. On a Hallberg-Rassy 36, expose the internal fixings and inspect behind the cabinet before dismantling it, as the boat's version and previous alterations can affect how it comes apart.
Check the access needed
Identify the job first. Reaching the oil filter, changing the raw-water impeller, adjusting belts and working on the starter motor may each need a different opening. Remove the normal engine access covers, then check whether removing a shelf, drawer or cabinet back would give you enough room.
The HR 36 comes in different versions, and repowering or replacement joinery can change the arrangement further. Without identifying the installation, there is no reliable universal screw count or removal sequence.
Before dismantling, photograph the cabinet inside and out, record your hull number and photograph the joints with the surrounding woodwork. These details may help Hallberg-Rassy or a joiner familiar with the marque identify the original arrangement.
Work with the engine cold. Isolate its starting supply and any electrical circuits passing through the cabinet, and check behind every proposed drilling or cutting point.
Find the concealed fixings

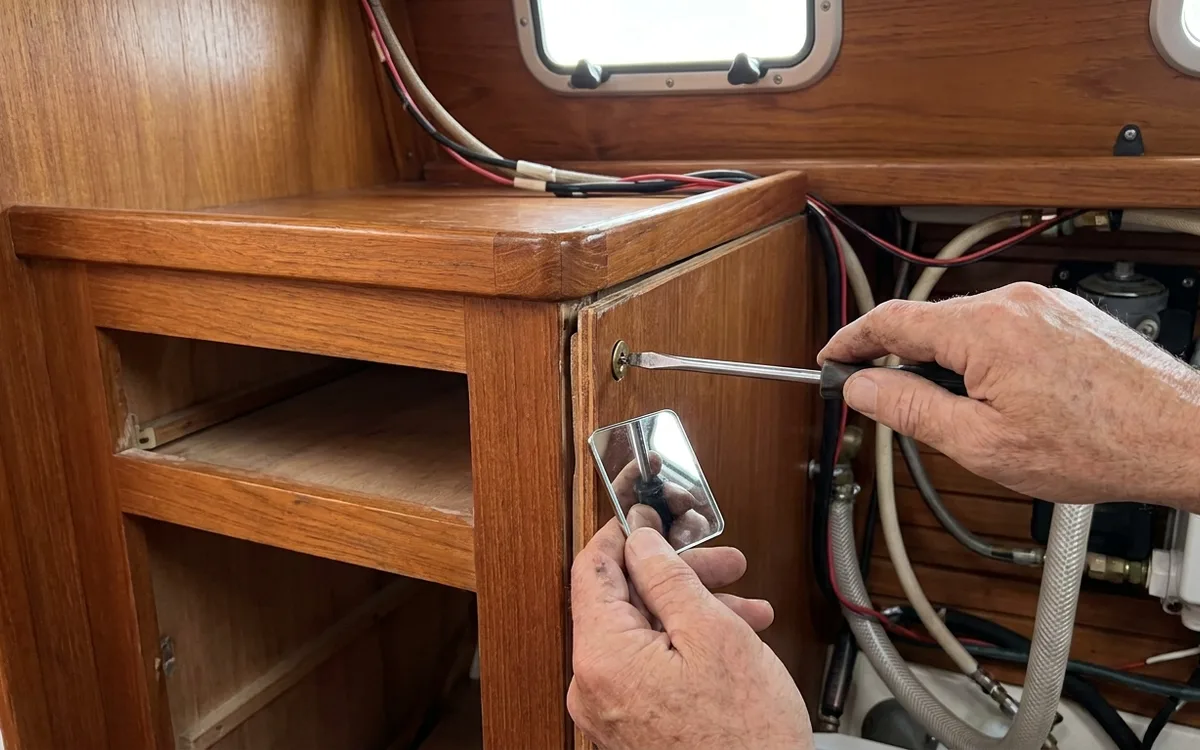

Empty the cabinet and remove loose shelves and drawers. Examine the underside, rear corners and adjoining lockers with a torch, inspection mirror or small borescope.
- Look inside first: check for screws through the cabinet sides into timber cleats, and through the bottom into its plinth.
- Inspect the edges: small trim strips may hide screw heads. Establish how the strips are attached before lifting them.
- Check timber plugs: a circular plug may cover a fixing. Removing it will usually mean fitting a matching replacement and repairing the finish locally.
- Inspect behind: wiring clips, hoses, ducting and sound insulation may connect the cabinet to the engine enclosure.
- Look for structural connections: glassfibre bonding onto the hull, a continuous plywood bulkhead or support for the companionway needs assessment before removal.
A visible joint does not prove that the whole unit is removable. Varnish bridging a joint can also make separately fitted pieces look continuous.
Remove the cabinet in stages
Once you have established that the cabinet is independent furniture, start with the smallest detachable components and work towards the main carcass.
