What anchor size and chain length are suitable for a Hallberg-Rassy 42?
I'm reviewing the anchoring gear on my Hallberg-Rassy 42 before spending more nights at anchor. What weight of anchor and what diameter and length of chain would you recommend for coastal cruising, with a possible Mediterranean trip?
Answer
A sensible starting point for a Hallberg-Rassy 42 is a modern 25 to 33 kg anchor with 60 to 80 m of calibrated 10 mm galvanised chain. For extended Mediterranean cruising or deeper anchorages, consider 80 to 100 m, provided the windlass, chain locker and weight in the bow allow it.
Check the existing installation
Start with the windlass gypsy markings, chain specification and bow-roller dimensions. These determine which replacement gear will fit and work properly. Stronger chain is no improvement if it jumps or jams in the gypsy.
The earlier HR42E and later HR42F differ in displacement and foredeck arrangements. Cruising equipment adds considerable weight, so use the boat's loaded displacement when consulting the anchor manufacturer's displacement and length chart. Then allow for the exposure you expect.
- Gypsy: establish the required chain diameter and link standard from its markings or the windlass manual.
- Chain: measure several unworn links and identify its grade; diameter alone does not establish strength or compatibility.

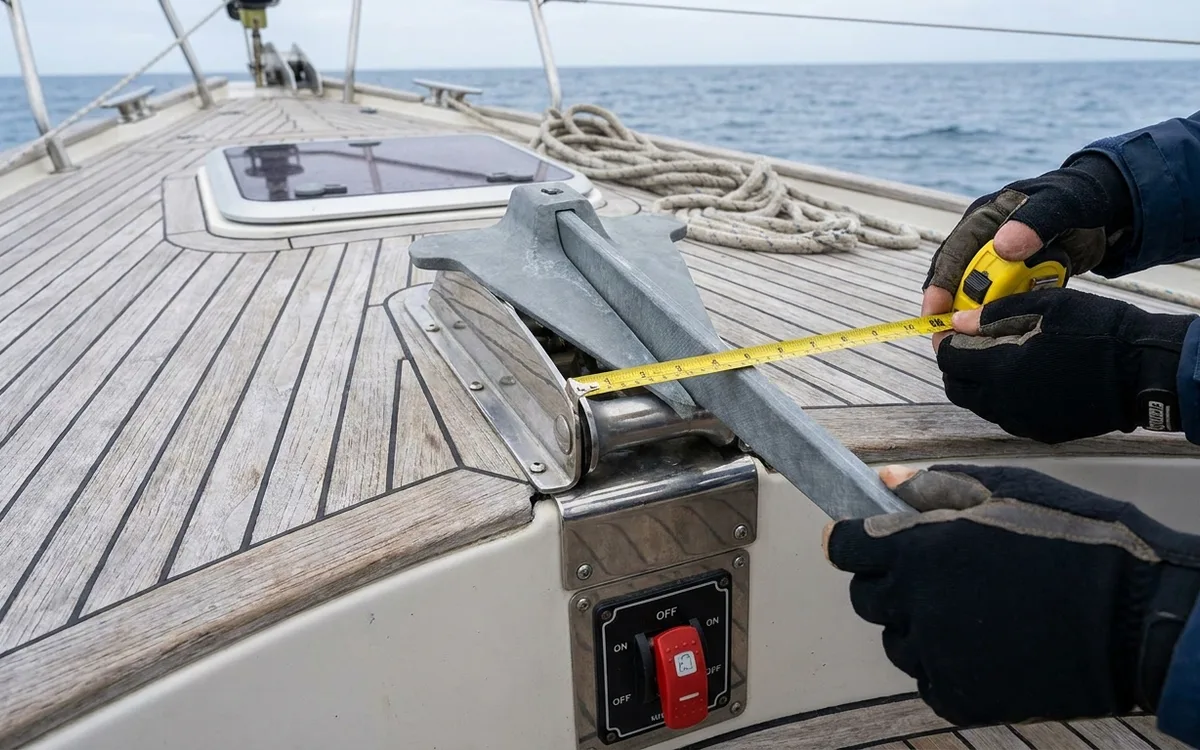

- Bow roller: check shank clearance, fluke clearance from the stem and whether the anchor can be secured firmly.
- Locker: check drainage and ensure there is enough fall below the windlass for chain to pile up without blocking the feed.
Isolate the windlass electrically before putting fingers near its gypsy or working beneath the chain feed.
Choose a 25 to 33 kg anchor
A 25 kg modern anchor is a reasonable starting point for everyday use. For frequent overnight anchoring, exposed cruising or living aboard, I would favour the 30 to 33 kg class, provided it fits properly. Rocna's 25 kg and 33 kg models are examples to check against the current sizing chart and a full-size fitting template.
Some HR42Es were supplied with a roughly 20 kg, 45 lb CQR. That provides historical context, but does not make a 20 kg replacement the automatic choice. Anchor design, seabed and the boat's loaded displacement matter alongside weight.
A larger anchor offers useful reserve, but it still needs suitable holding ground and must dig in. Weed, rock and very soft mud can defeat an otherwise adequate anchor. Check that the windlass can recover the proposed anchor and hanging chain within its specified working limits.
Match chain size and length
Calibrated 10 mm galvanised chain is a practical starting specification for this size of yacht. Certified Grade 40 or Grade 43 chain is commonly considered, but confirm its working load, exact link dimensions and suitability with the windlass supplier. DIN and ISO chain descriptions do not guarantee an interchangeable fit.
