How can I set a boat anchor quickly and securely?
I have a 10-metre cruising boat with an electric windlass and mostly anchor in sand or mud. Sometimes the anchor catches immediately and sometimes it drags: what sequence should I use to get it set properly first time?
Answer
To set an anchor quickly and securely, lower it onto suitable seabed, pay out enough chain as the boat moves backwards, then increase reverse power progressively to bury it. Confirm that the boat stops moving against fixed shore references before switching off the engine.
Choose the anchoring spot
Time spent choosing the spot saves repeated attempts. Look for sand, mud or clay, shelter from the forecast wind and enough room to swing if it changes. Avoid thick weed, rock and any seabed your anchor cannot penetrate.
Where space permits, make a slow reconnaissance circle roughly 35 to 40 metres around the intended drop point, watching the depth sounder. Check the full swinging area too: once the chain is out, the boat may lie considerably farther from the anchor.
- Check whether your sounder displays depth below the transducer, below the keel or below the surface.
- Allow for the lowest expected water level, your draught and clearance beneath the keel.
- In Danish waters, allow for water-level falls of 30 cm or more as conditions change, despite the small astronomical tide.
- Watch nearby boats and leave room for different swinging patterns, especially between boats using all-chain and rope rodes.
Keep hands and feet clear of the chain, gypsy and bow roller. Never stand inside a loop of rope.
Work out the scope
Measure scope from the bow roller to the seabed, using the greatest expected water depth during your stay. The sounder reading alone underestimates that distance.
For routine anchoring, start with about 5:1 scope on all-chain or around 7:1 with a predominantly rope rode. Allow more in stronger conditions where room permits. These ratios are starting points, not guarantees. Seabed, anchor design and exposure all affect holding.
With 4 metres of water and a bow roller 1 metre above the surface, the working distance is 5 metres. Five-to-one scope means 25 metres of rode. Include any expected rise in water level before calculating how much to pay out.
Make sure the chain markings are visible, clear the foredeck and agree simple signals between helm and bow. Check that the bitter end is secured to a suitable attachment before releasing anything.
Lower and lay out
Approach slowly, bow into the wind, or into the dominant current if that controls the boat. Stop all forward movement over the ground before lowering the anchor.
- Lower the anchor under control until it reaches the bottom. Avoid dropping a heap of chain onto it.
- Let the boat drift backwards, paying out chain at roughly the same rate. Use very slow reverse if there is too little wind or current.
- Pause the payout briefly once or twice to straighten the rode and let the anchor start to bite, without snatching it.

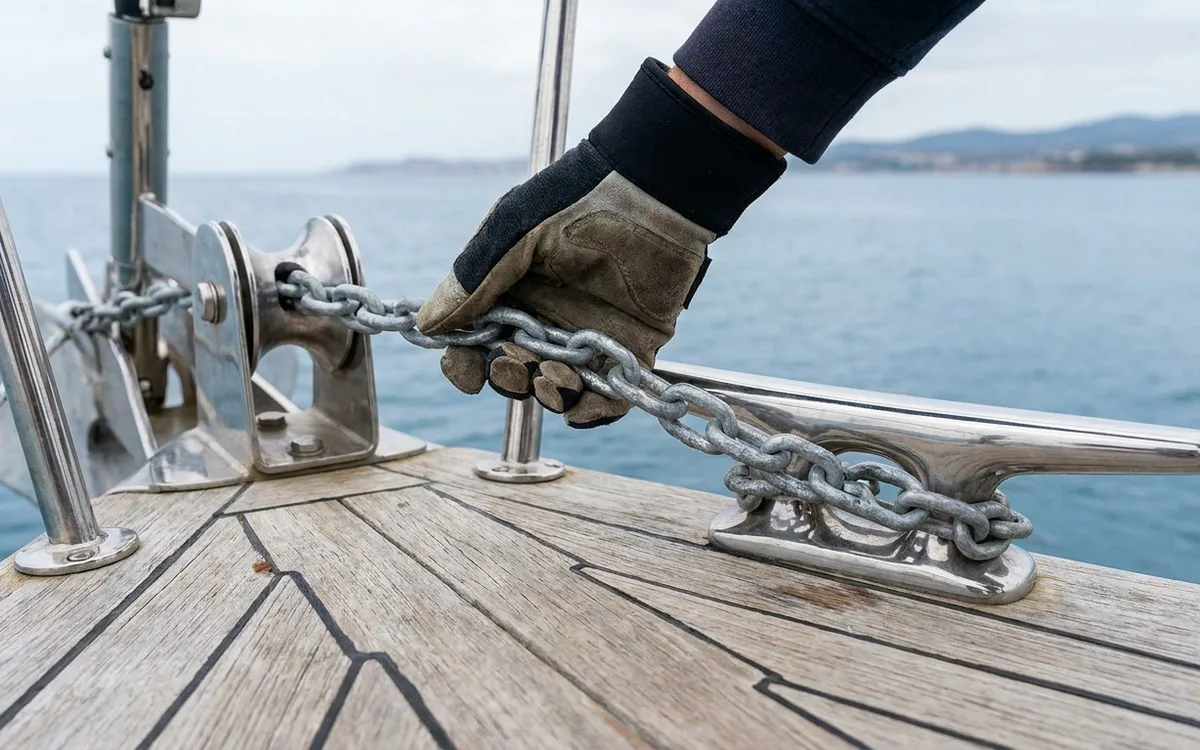

- At the planned scope, stop paying out. Transfer the load to a suitable cleat through a snubber, or to a properly rated chain stopper.
